Articulating Boom Lift 20.16m Z-60 FE
- タイプ
- Hybrid
- モデル
- Z-60 FE
- 製造国
- USA/ China
GENIE is an American company founded in 1966 when Bud Bushnell bought the manufacturing rights to a material lift that operated on compressed air. With growing demand for material lifts and mobile elevating work platforms (MEWPs), products such as man-lifts, stick booms, articulated booms, scissor lifts and telehandlers have been added to the Genie® product line. Genie equipment is used in a variety of industries, including rental, aviation, construction, entertainment, government and military, industrial, as well as warehouse and retail.
この機器には複数のモデルがございます。詳細についてはお気軽にお問い合わせください。
Two machines in one, the Genie® Z®-60 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.
- Full-time active oscillating axle helps maintain traction on rough terrain
- 4WD and 45% gradeability for superior terrainability
- High-efficiency AC drive system for enhanced driving performance and simplified maintenance
- Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers
- Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
※表は左右にスクロールして確認することができます。

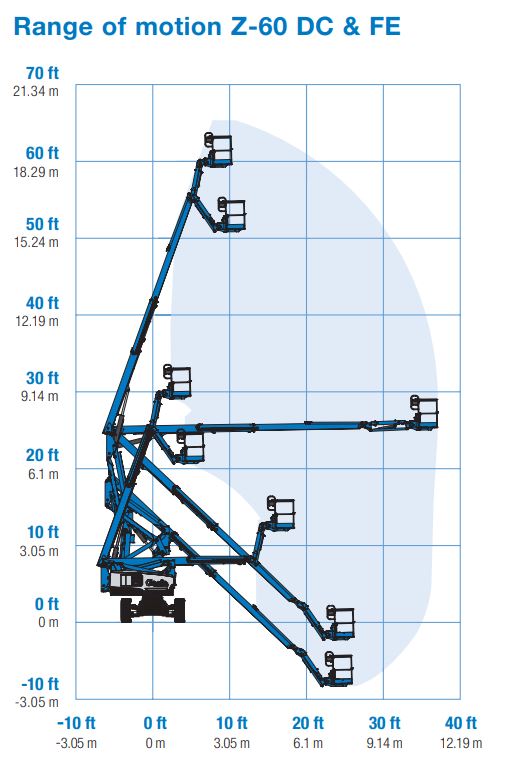

Max Working Height
20.16 m
Max Platform Height
18.16 m
Safe Working Load
227 kg
Max Horizontal Reach
11.15 m

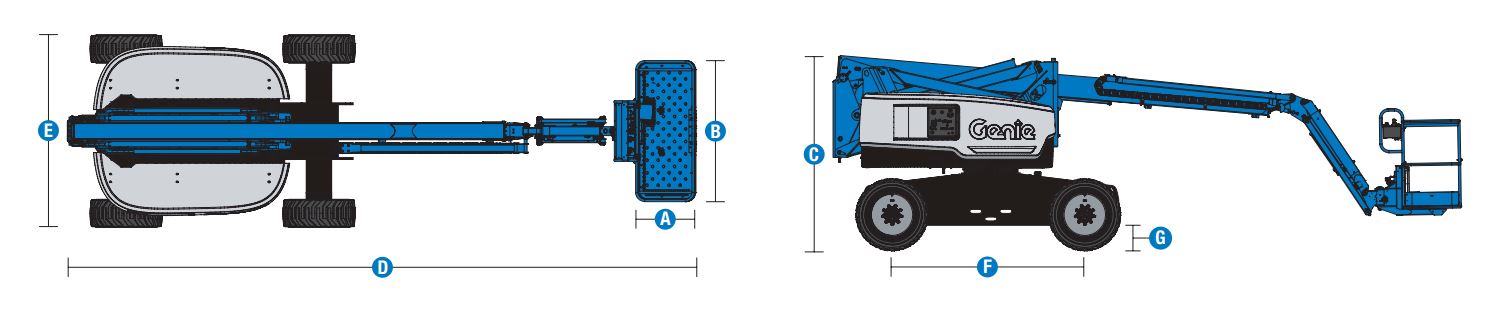

Platform Length (A)
0.91 m
Platform Width (B)
2.44 m
Machine Stowed Height (C)
2.54 m
Machine Stowed Length (D)
8.15 m
Machine Weight
7,756 kg
Fuel Tank Capacity
64 ℓ
