Telescopic Boom Lift 21.86m S-65 TraX
- タイプ
- Diesel Engine
- モデル
- S-65 TraX
- 製造国
- USA/ China
GENIE is an American company founded in 1966 when Bud Bushnell bought the manufacturing rights to a material lift that operated on compressed air. With growing demand for material lifts and mobile elevating work platforms (MEWPs), products such as man-lifts, stick booms, articulated booms, scissor lifts and telehandlers have been added to the Genie® product line. Genie equipment is used in a variety of industries, including rental, aviation, construction, entertainment, government and military, industrial, as well as warehouse and retail.
この機器には複数のモデルがございます。詳細についてはお気軽にお問い合わせください。
Genie® S-65 TraX™ telescopic boom lifts are the redesigned Xtra Capacity™ version of the popular Genie S-65 TraX. They can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to their dual lift capacity and offer innovative features to help increase jobsite efficiency.
- The patented track design features 4 independent tracks, swiveling vertically up to 20° for a smooth drive on rough ground conditions
- 30° steer angle for easy maneuvering
- Full-time active oscillating axle and full-time positive traction for superior terrainability
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- 5 ft/1.52 m robust articulating jib
- Dual lifting capacity of 660 lb/300 kg and 1,000 lb/454 kg to lift increased loads and up to 3 operators
- Automatic envelope control technology for a smooth operating envelope
- Zero-load field calibration and onboard diagnostics maximize serviceability
※表は左右にスクロールして確認することができます。

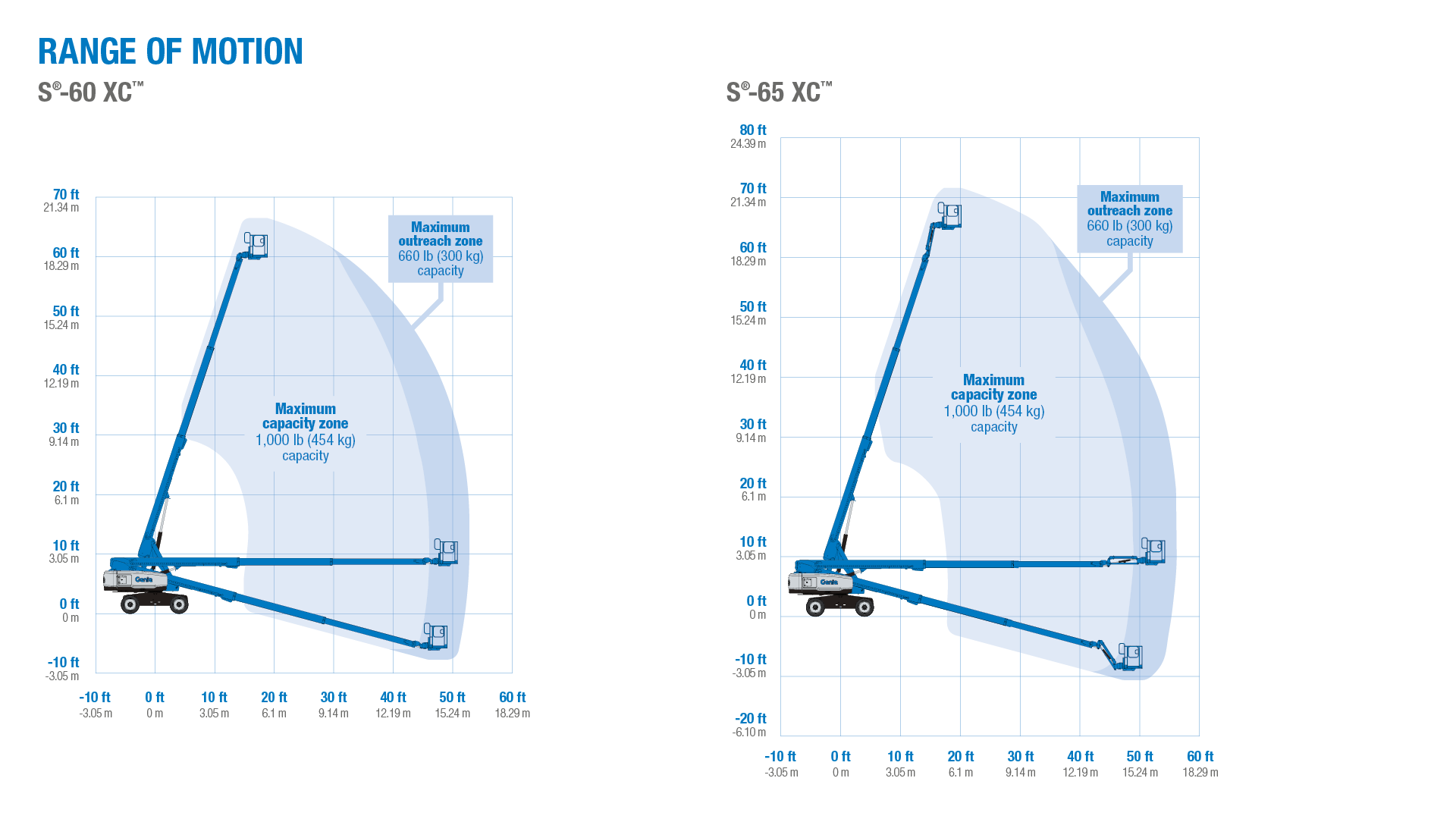

Max Working Height
21.86 m
Max Platform Height
19.86 m
Safe Working Load (unrestricted/ restricted)
300/ 454 kg
Max Horizontal Reach
16.51 m

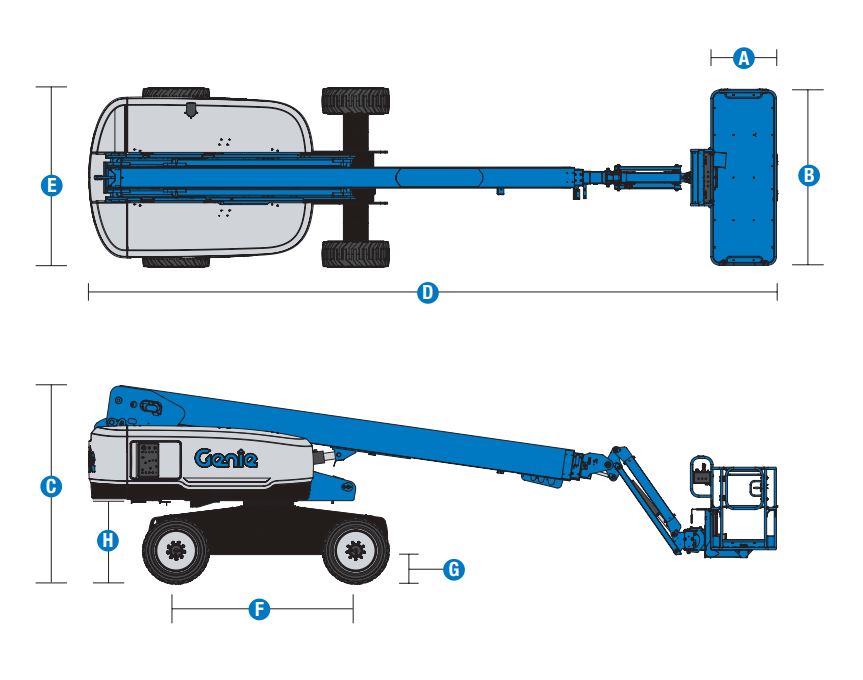

Platform Length (A)
0.91 m
Platform Width (B)
2.44 m
Machine Stowed Height (C)
2.87 m
Machine Stowed Length (D)
9.76 m
Machine Weight
13,098 kg
Fuel Tank Capacity
132 ℓ
