Telescopic Boom Lift 43.15m SX-135 XC
- タイプ
- Diesel Engine
- モデル
- SX-135 XC
- 製造国
- USA/ China
GENIE is an American company founded in 1966 when Bud Bushnell bought the manufacturing rights to a material lift that operated on compressed air. With growing demand for material lifts and mobile elevating work platforms (MEWPs), products such as man-lifts, stick booms, articulated booms, scissor lifts and telehandlers have been added to the Genie® product line. Genie equipment is used in a variety of industries, including rental, aviation, construction, entertainment, government and military, industrial, as well as warehouse and retail.
この機器には複数のモデルがございます。詳細についてはお気軽にお問い合わせください。
The Genie® SX-135 XC™ telescopic boom delivers industry-leading outreach and capacity through the full working envelope for incredible operational versatility and accessibility. It boasts 660 lb/1,000 lb (300/454 kg) dual platform capacity with a smooth range of motion envelope to lift heavy loads in the most challenging jobsite applications.
- Industry-leading 90 ft (27.43 m) of maximum outreach

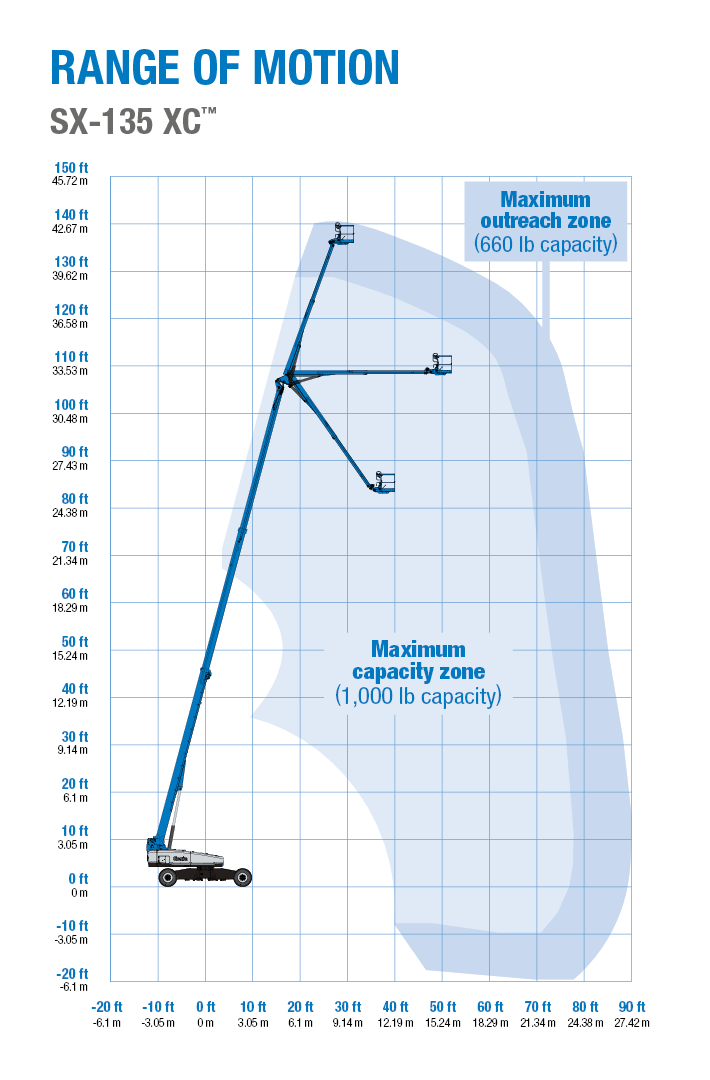

- Increased range of motion with 18 – 30 ft (5.48 – 9.14 m) Telescoping Jib-Extend® and 130° of jib articulation
- Load sense technology for accurate load weighing and zero-load field calibration
- Extended reach out and down capability with 19 ft 8 in (6.00 m) of reach below grade
※表は左右にスクロールして確認することができます。
Max Working Height
43.15 m
Max Platform Height
41.15 m
Safe Working Load (unrestricted/ restricted)
300/ 454 kg
Max Horizontal Reach
27.43 m

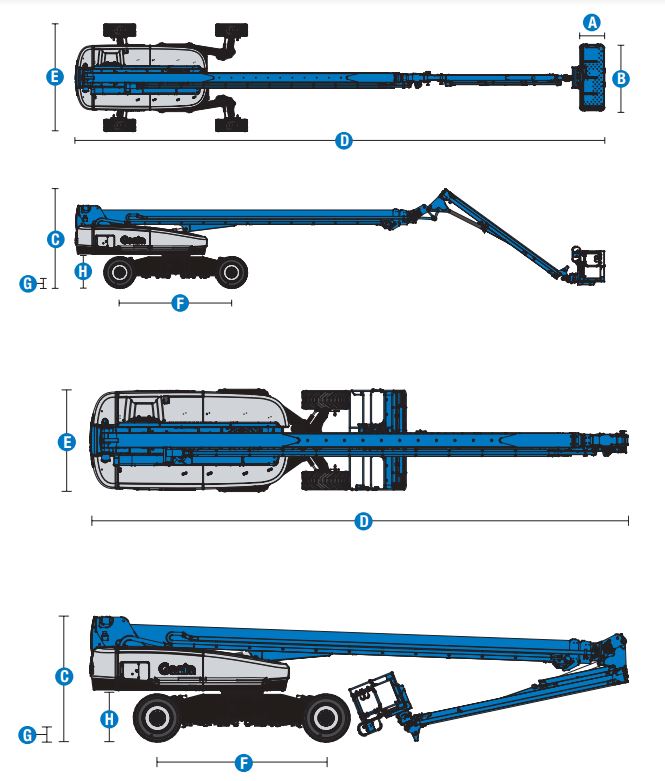

Platform Length (A)
0.91 m
Platform Width (B)
2.44 m
Machine Stowed Height (C)
3.05 m
Machine Stowed Length (D)
19.76 m
Machine Weight
21,273 kg
Fuel Tank Capacity
151 ℓ
