Personnel Lift QU14DC 14m

Personnel Lift QU14DC 14m

タイプ
Electric
モデル
QU14DC
製造国
France/ China

Haulotte Group is a major French aerial work platform manufacturer. For over 40 years, it has been the European leader in the design, manufacture, and sale of a wide range of products, the core of which is the aerial work platform.

この機器には複数のモデルがございます。詳細についてはお気軽にお問い合わせください。

Advantages of the Personnel Lift QU14DC

The Quick Up range of Push-arounds is adapted for all indoor projects.

  • Push-around mechanism: The user can manually push the lift to the desired working location, then elevate the platform electrically.
  • Lightweight: Operates on the most delicate floors. Easily moved by hand or loaded onto trucks and vans.

Image: A person manually lowering the Quickup Personnel Lift from a van by themselves.

  • Non-marking wheels and rubber stabilizers: Protect the floor in quality and appearance.

  • Compact size: Can pass through doors and fit into elevators.

Image: Easily passing the Quick Up Personnel Lift through a doorway.

Image: Easily passing the Quick Up Personnel Lift through a doorway.

  • Quick setup: Requires only one person.

  • Low maintenance: Offers great value for money.

Applications of the Personnel Lift QU14DC

With the above advantages, Quick Up is especially suitable for indoor work in confined or crowded areas such as supermarkets, retail stores, factories, warehouses, theaters, and auditoriums.

Applicable tasks include:

  • Installation of sound and lighting systems

  • Signboard installation

  • Inspection and maintenance of piping systems in factories

  • High-level painting and mural work

  • Interior decoration, etc.

Video of Personnel Lift Quick Up

Personnel Lift QU14DC for Sales in  Vietnam

Please contact us for a detailed quotation and the best price offer!

※表は左右にスクロールして確認することができます。

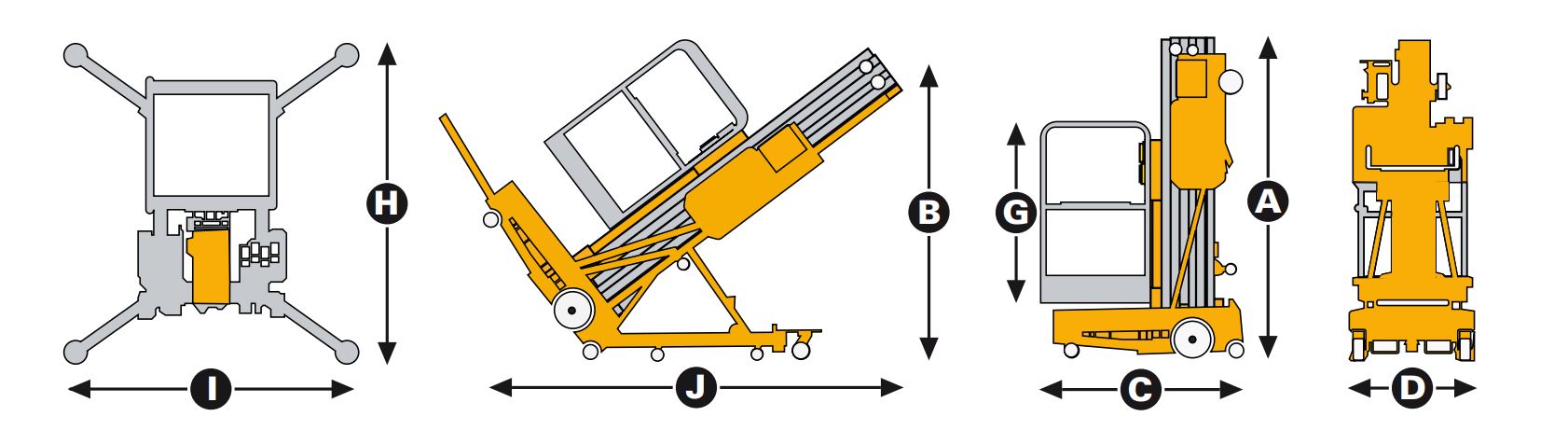

Specifications of Personnel Lift QU14DC

Model QU14DC
Max. Working Height 13.7 m
Max. Platform Height (G) 11.7 m
Lift Capacity 136 kg
Stowed Length (C) 1.47 m
Stowed Width (D) 0.8 m
Stowed Height (A) 1.98 m
Outrigger Width (I) 2.34 m
Outrigger Length (H) 2.7 m
Platform size 0.68 x 0.66 m
Power Source DC12V / Battery
Weight 497 kg
