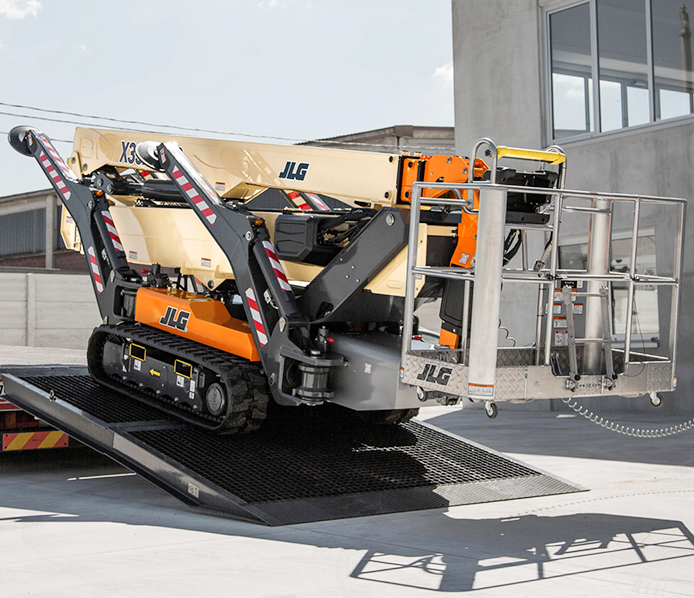

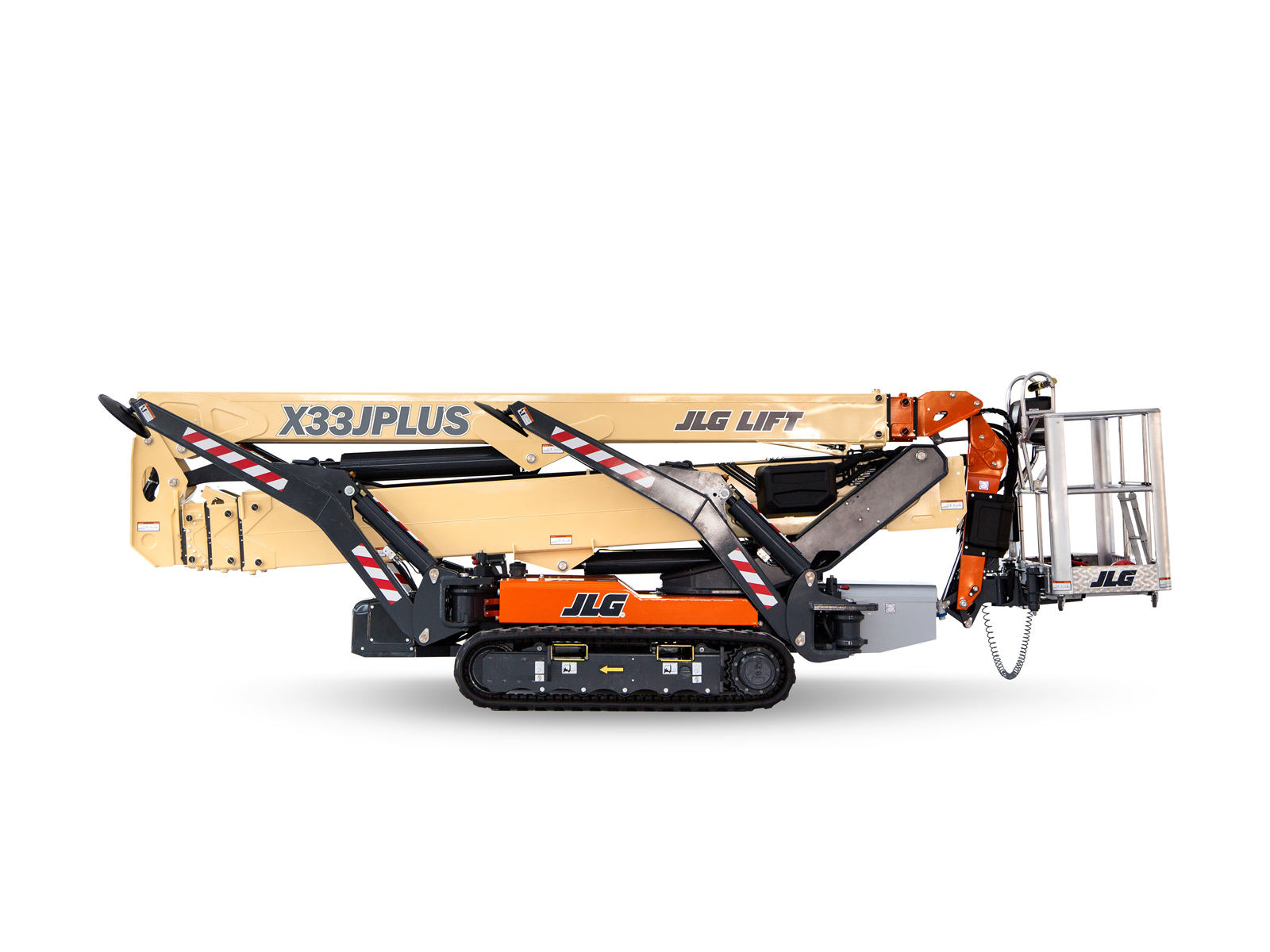

Overview of the JLG Compact Crawler Boom Lift X33JP

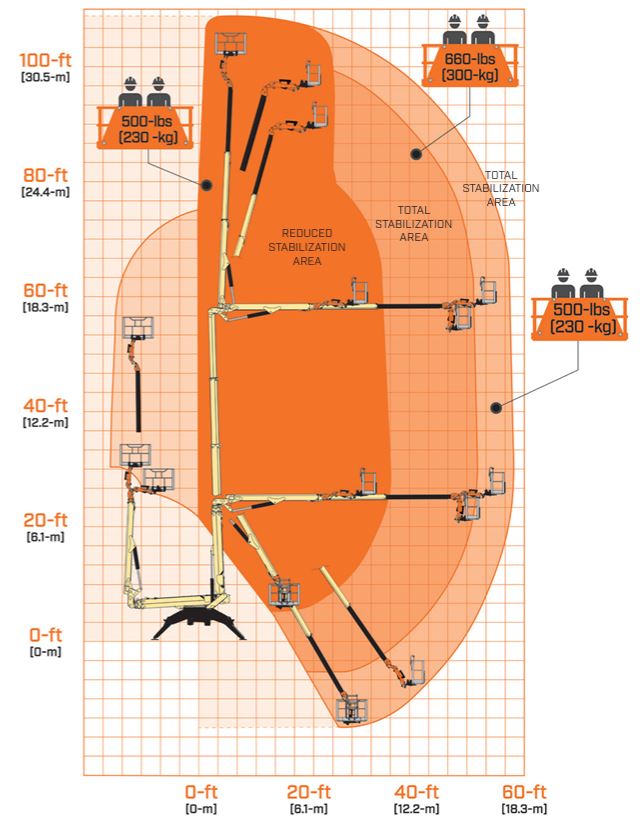

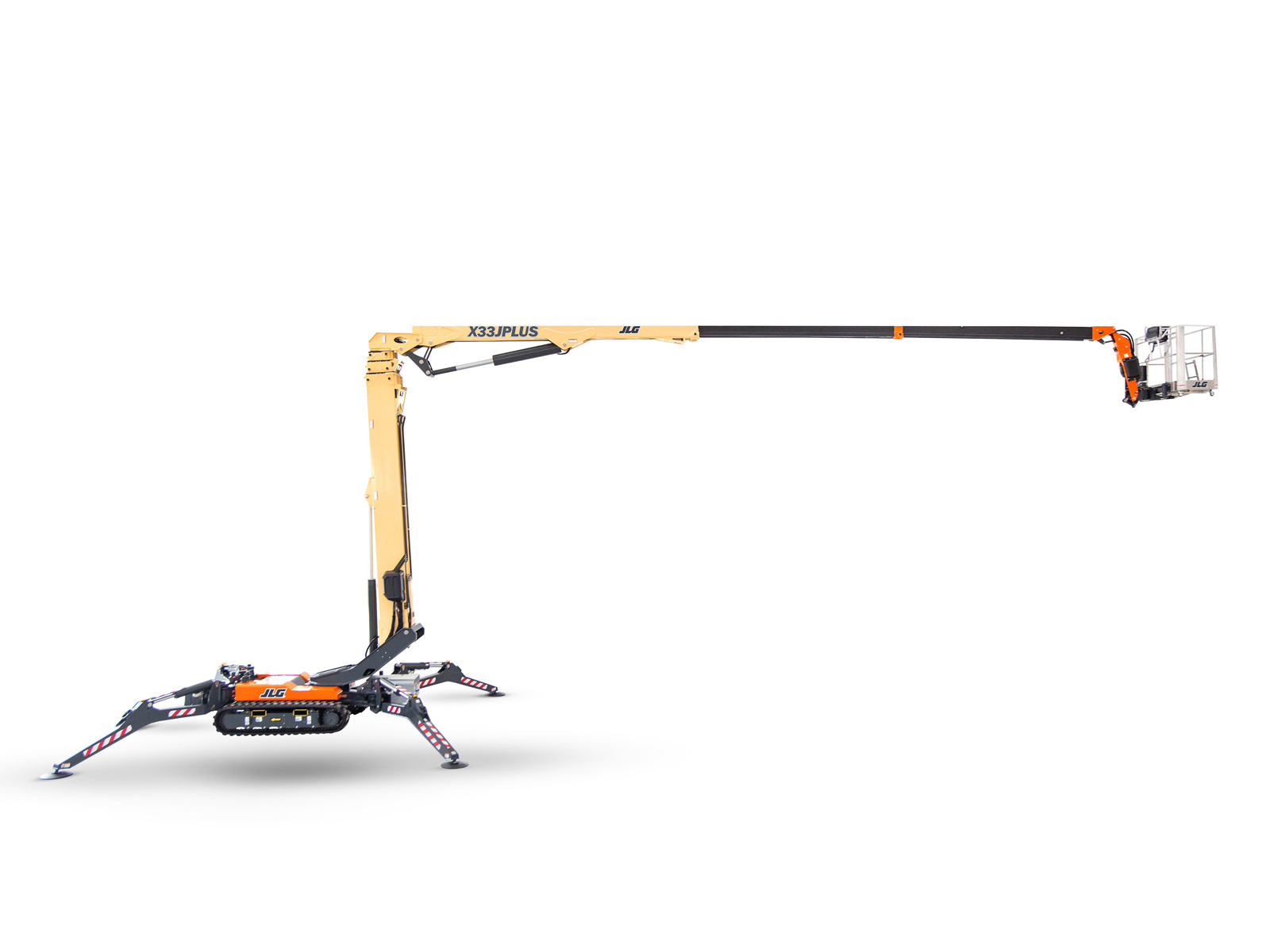

The Compact Crawler Boom Lift X33JP offers 32.6 m working height and 17.2 m up and over reach, with an industry-leading 230 kg unrestricted platform capacity. The articulated column design allows for a maximum working envelope to access tight, hard-to-reach indoor and outdoor applications – even below grade. It also offers improved stability with one-touch, self-leveling, multi-position outriggers. The small footprint allows for compact storage and efficient shipping to and from sites. The X33JP is equipped with an electrical, diesel engine and lithium-ion battery, as well as an optional bi-energy Lithium and diesel engine, ideal for both indoor and outdoor use.

Video of the JLG Compact Crawler Boom Lift X33JP

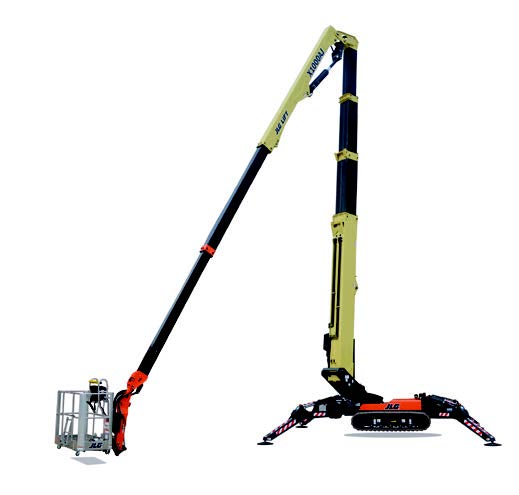

Note: The model in the video is X1000AJ (ANSI standard), equivalent to the X33JP (CE standard). The models sold by NISHIO in Vietnam would comply with CE standards.

Applications of the JLG Compact Crawler Boom Lift X33JP

• Maintain buildings, lighting systems, ventilation, air conditioning, fire protection,…
• Used for construction projects in narrow areas or sloped terrain where traditional boom lifts cannot operate.
• Install steel structures, signage, and electrical systems in high-ceiling or weak floors.
• Projects that require low-emission or low-noise equipment, such as factories, shopping malls, office buildings, or residential areas…
• Events and festivals, including stage setup, sound and lighting installation, or signage work,… in crowded areas or enclosed spaces.

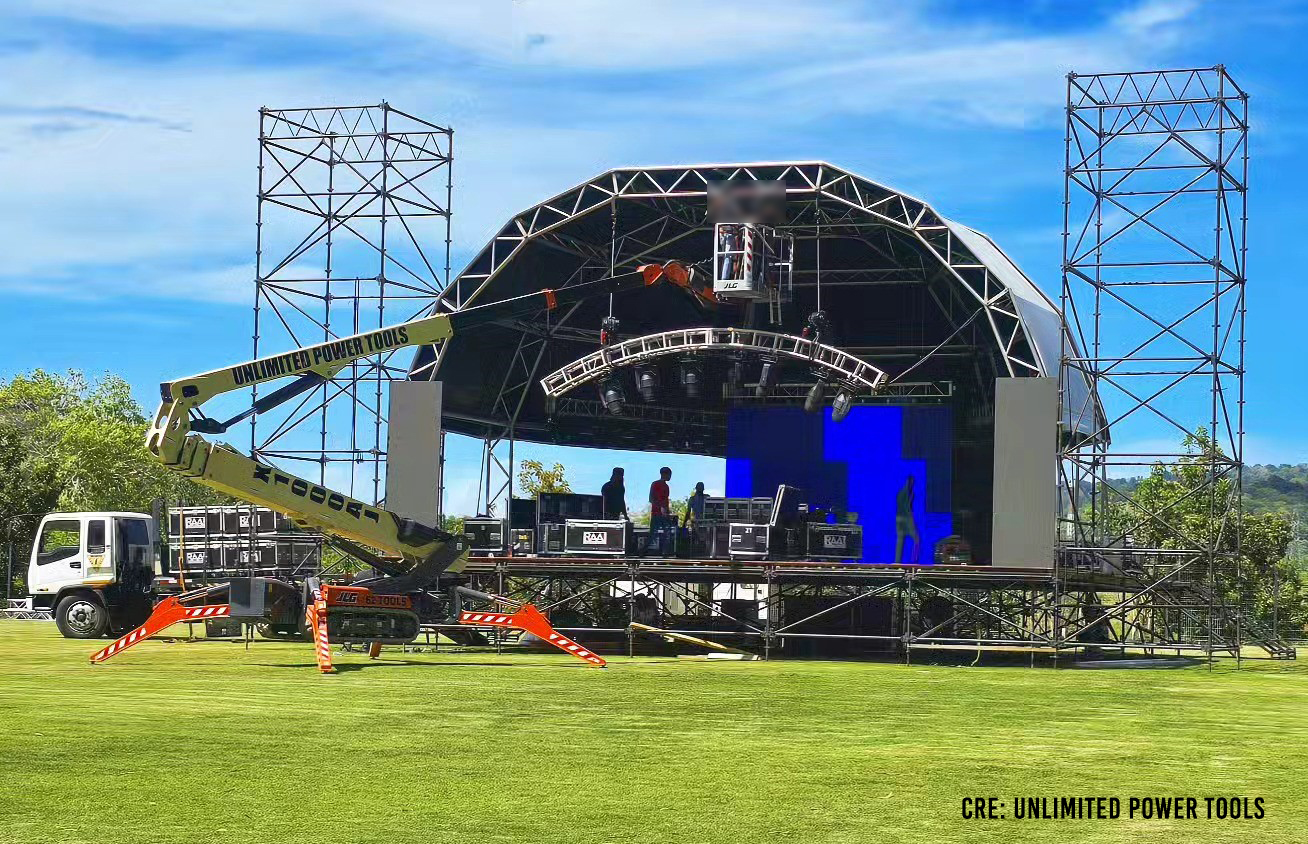

Image: Using Compact Crawler Boom Lift X1000AJ (X33JP) for setting up the stage of an outdoor event (Credit: Unlimited Power Tools)

Key Advantages of the JLG Compact Crawler Boom Lift X33JP

Smart controls

• Envelelop tracking system allows moving smoothly along walls or flat surfaces for efficient and safe work.
• “Go Home” function: Pressing “Go Home” button, then the boom automatically retracts to its stowed position after completing the job.
• “Back to Work” function: The crawler can memorize the last working position andcan automatically return to it with the “Go Back” button – saving time on repetitive tasks.
• Skyline technology offers enhanced protection for the control panel against impact and harsh environmental conditions.

Video about “Go Home” and “Back to Work” functions

Flexible and Eco-Friendly Operation

• Power options – Operated by electric and engine for both indoor and outdoor use.
• Quiet operation and low emissions – Ideal for indoor use or sensitive working environments.
• Compact, narrow footprint fits through a double doorway.

• Improved operating hydraulic function speed.
• Industry-leading 230 kg capacity platform.

Video: Starting the Compact Crawler

Smart and Safe Design

• Near square outrigger pattern helps provide additional stability and provides leveling on uneven surfaces. The standard removable outrigger pads help minimize the impact on sensitive areas.

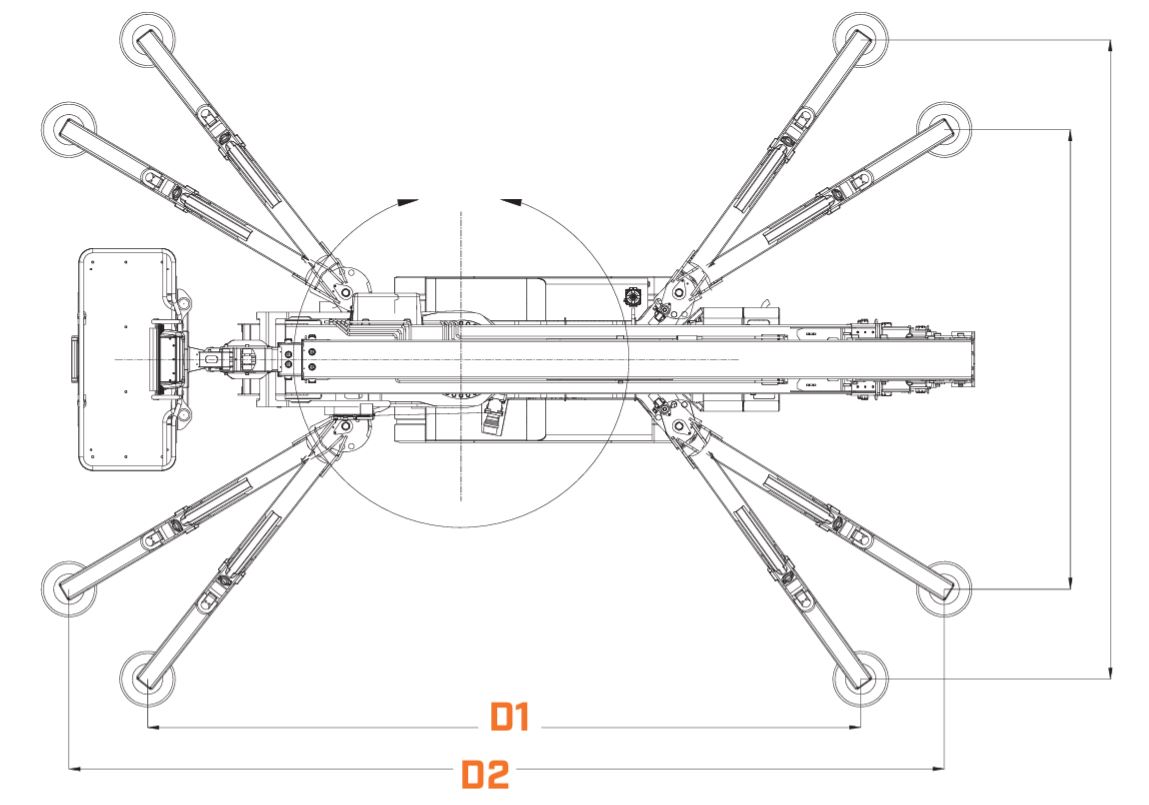

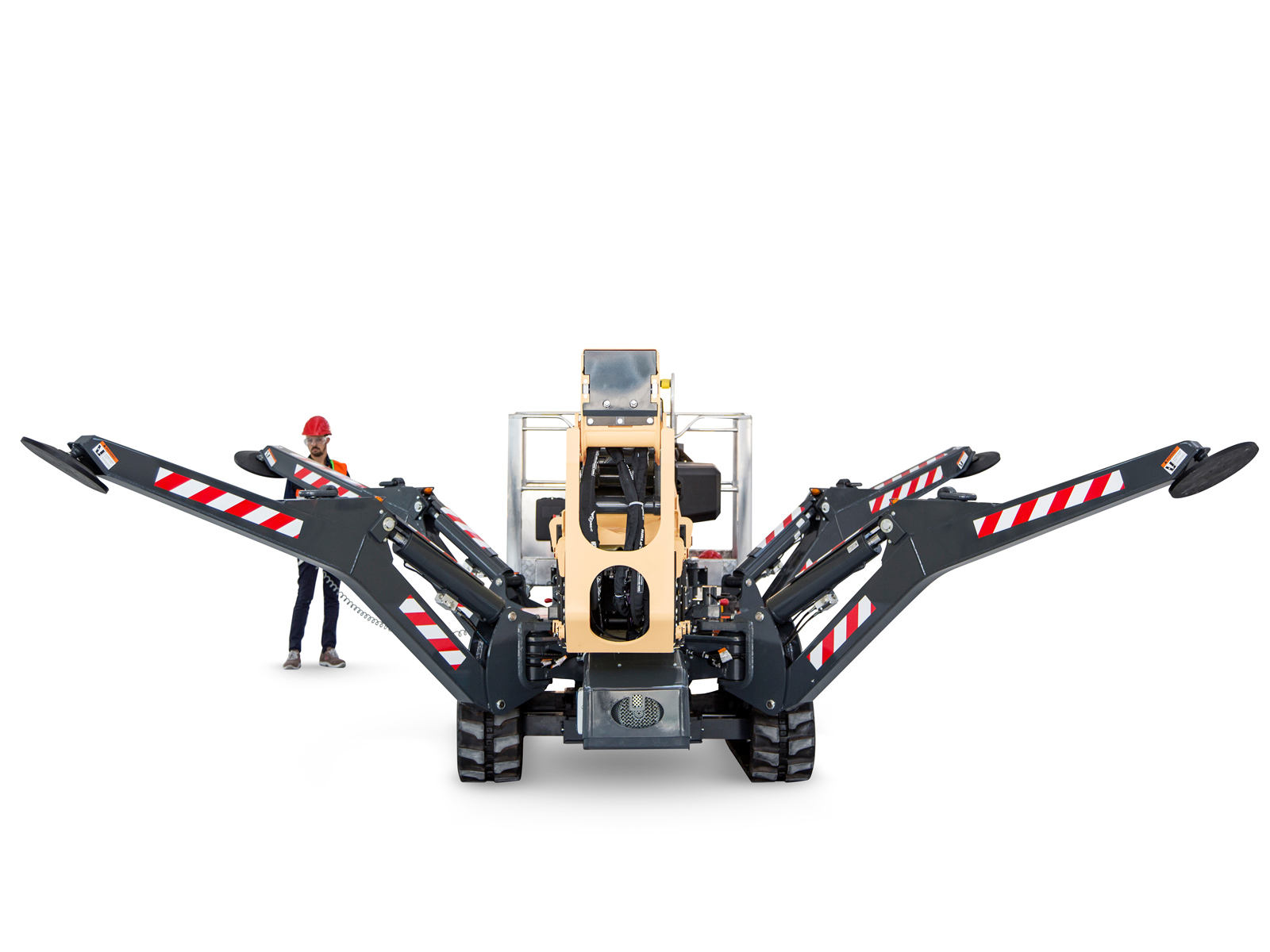

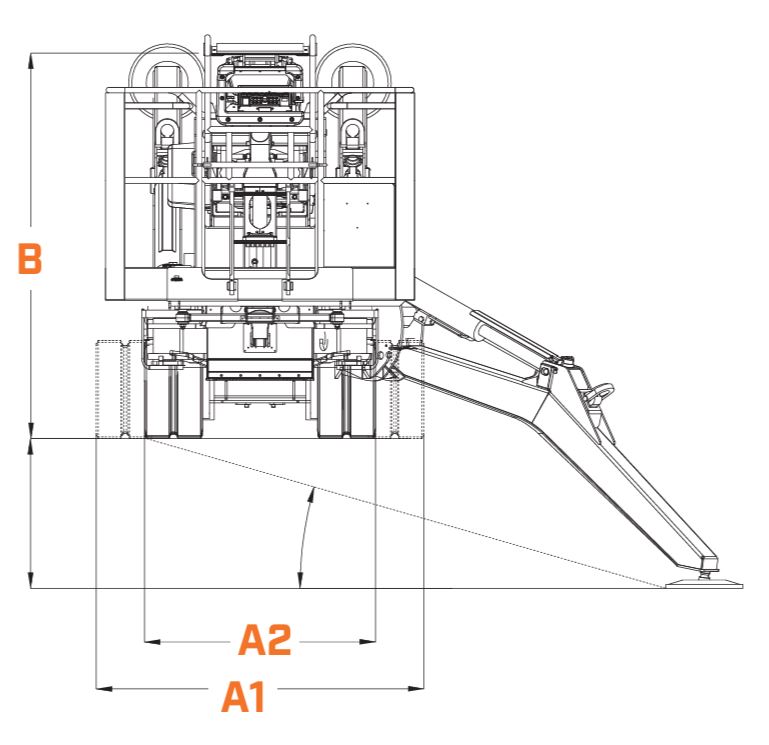

• Multi-position outriggers with dual stabilization capabilities for use in standard and narrow workspaces. One-touch self-leveling outriggers stabilize and level machine on up to a 10-degree drive slope.
• Reduce set-up time with auto-levelling outriggers.

Video: Outriggers of the JLG Compact Crawler Boom Lift

Video: Setting the Outriggers of the Compact Crawler Boom Lift

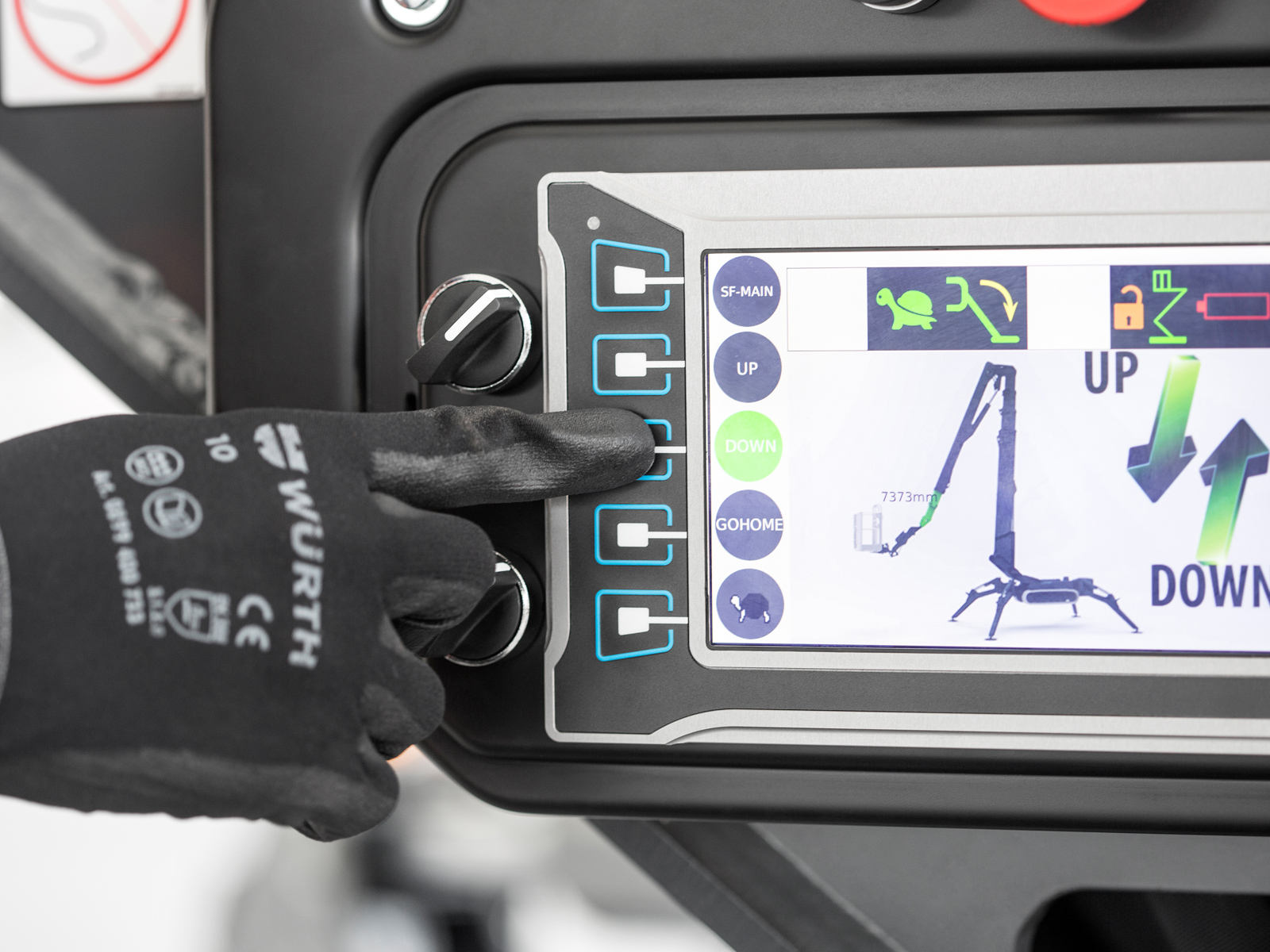

• Multi-lingual and user-friendly LCD color control panel. Clear cover protects from the elements while providing maximum visibility. Lockable to deter theft and unauthorized use.

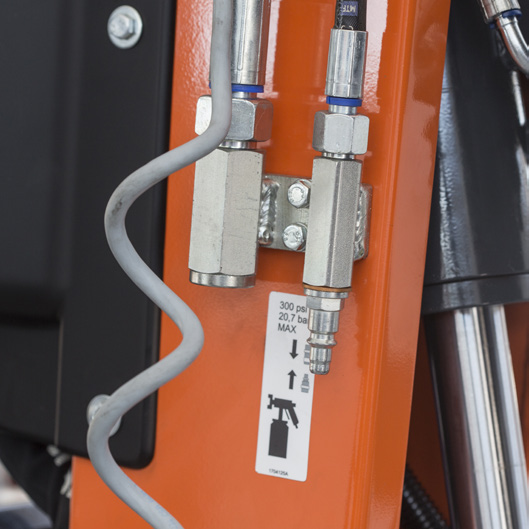

• Air and water line hookups at the base of the machine supply to the platform for jobs such as window-washing or general maintenance/construction tasks that require the use of air-powered tools.

• Platform position sensor and lock.
• Overload alert system.
• Automatic cut-out when out of level.

Video: Compact Crawler Operator Safety

• SKYGUARD system enhances control panel protection.

• Lightweight aluminum platform for two persons (standard).

• Platform quick disconnect for easy transport through narrow doors and aisles.

Video: Removing the Platform of the Compact Crawler Boom Lift

• Available fork pockets provide easy lifting.

• Lifting hooks.

• Exclusive QuikStik: Boom design delivers faster cycle speeds from ground to elevation for work done quickly and efficiently.

Excellent Accessibility

• Articulating jib, 360° of non-continuous swing, and 180° of basket rotation for greater reach.

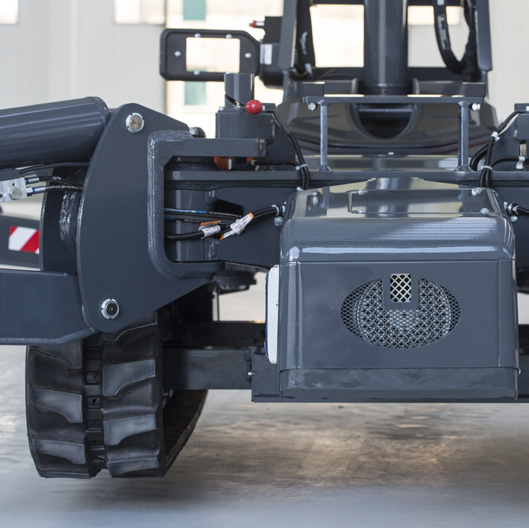

• High-profile non-marking tracks.
• Bánh xích xó thể mở rộng để tăng độ ổn định khi di chuyển trên nền dốc và thu hẹp lại để dễ dàng đi qua cửa ra vào hoặc lối đi hẹp.

• Gradeability of 28.7% and operating slope up 16°, allowing flexible movement on uneven or soft ground.

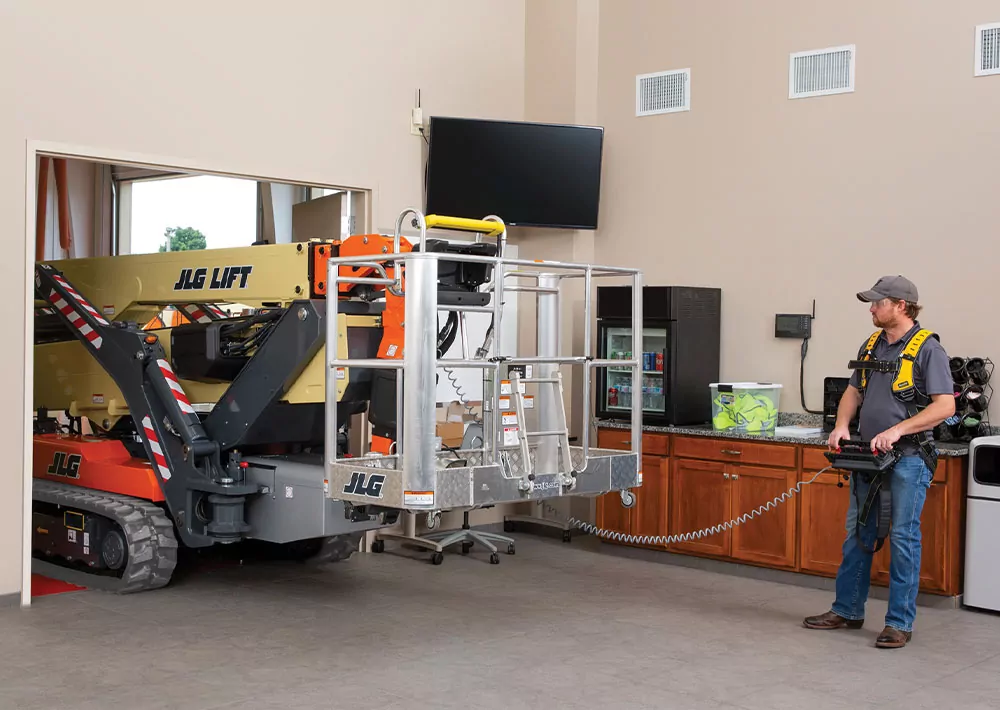

• Remote drive control and full proportional controls enable navigation through tight spaces or during loading/unloading.

Video: The remote control station to operate the ground and aerial functions of the Compact Crawler Boom Lift

Pricing for Sales of JLG Compact Crawler Boom Lift X33JP in Vietnam

NISHIO RENT ALL VIETNAM CO., LTD is one of the most reliable and professional aerial work platform providers worldwide. With many years of cooperation with JLG, NISHIO now officially sells JLG Compact Crawler Boom Lifts in Vietnam. We are committed to delivering high-quality equipment that meets international standards, ensuring safety and maximizing performance during operation.

Please contact us for more information!
