Scissor Lift 9.75m SJ6826RT
- タイプ
- Diesel Engine
- モデル
- SJ6826 RT
- 製造国
- USA/ China
Skyjack is a Canadian company founded in 1985, known for making reliable and high-quality aerial work platform equipment. Over the years, Skyjack became an industry leader by providing machine features that combine durability, quality, and ease of maintenance. Quality and reliability are the hallmarks that have given Skyjack scissor lifts a solid reputation as the best and one in three scissor lifts sold worldwide is a Skyjack.
この機器には複数のモデルがございます。詳細についてはお気軽にお問い合わせください。
- Performance: Crossover symmetrical 4WD, drivable at full height with fully extended 5’ (1.52 m) rollout deck, up to 45% gradeability.
- Controls: Proportional drive/lift controls, SKYCODED™ color-coded wiring, shroud-style impact-resistant control box with extended cable.
- Engine: Dual fuel (gas/propane) or diesel, 90° swing-out engine tray for easy maintenance.
- Safety: Tilt alarm (4.5° x 2.5°) with drive/lift cut-out, overload sensing, lanyard points, all-motion audible alarm, operator horn.
- Platform: 110V AC outlet with GFI, hinged railing system, fold-down rails, full-height spring-hinged rear entry gate.
- Design: Multiple wet disc hydraulic release brakes, foam-filled low-profile grip lug tires; Forklift pockets, tie-down/lift lugs, telematics ready.
- Warranty: 2-year Gold Leaf, 5-year structural.
※表は左右にスクロールして確認することができます。

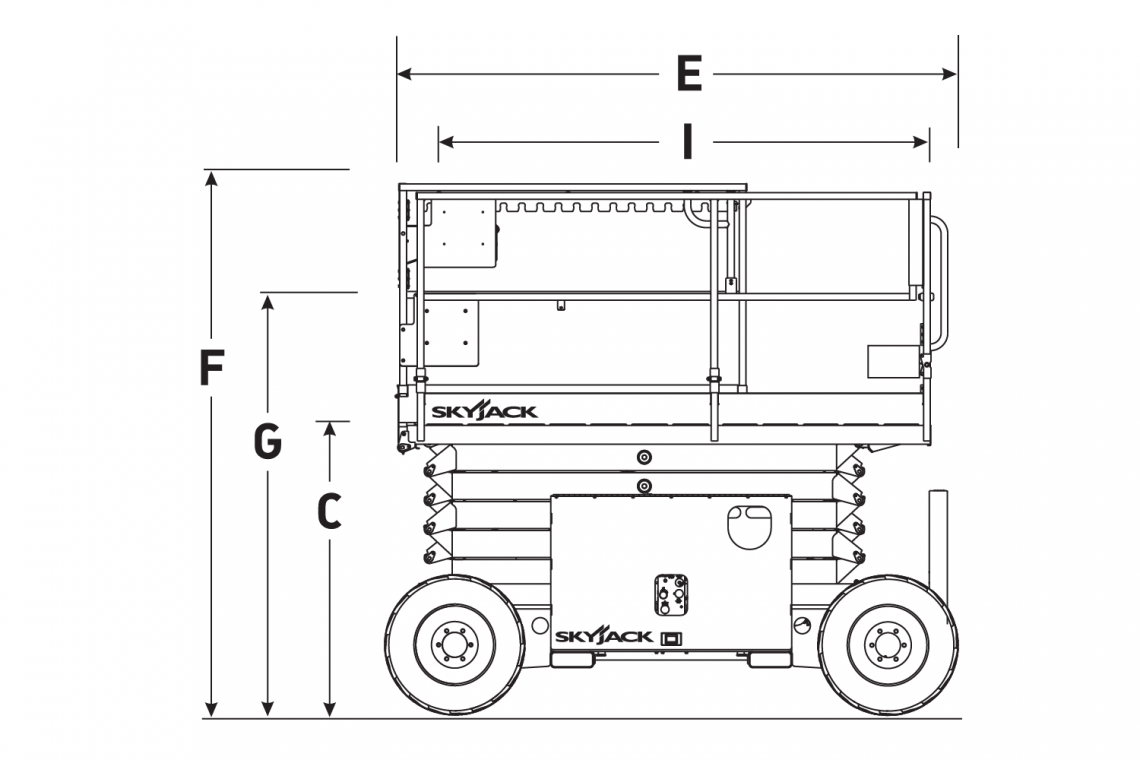

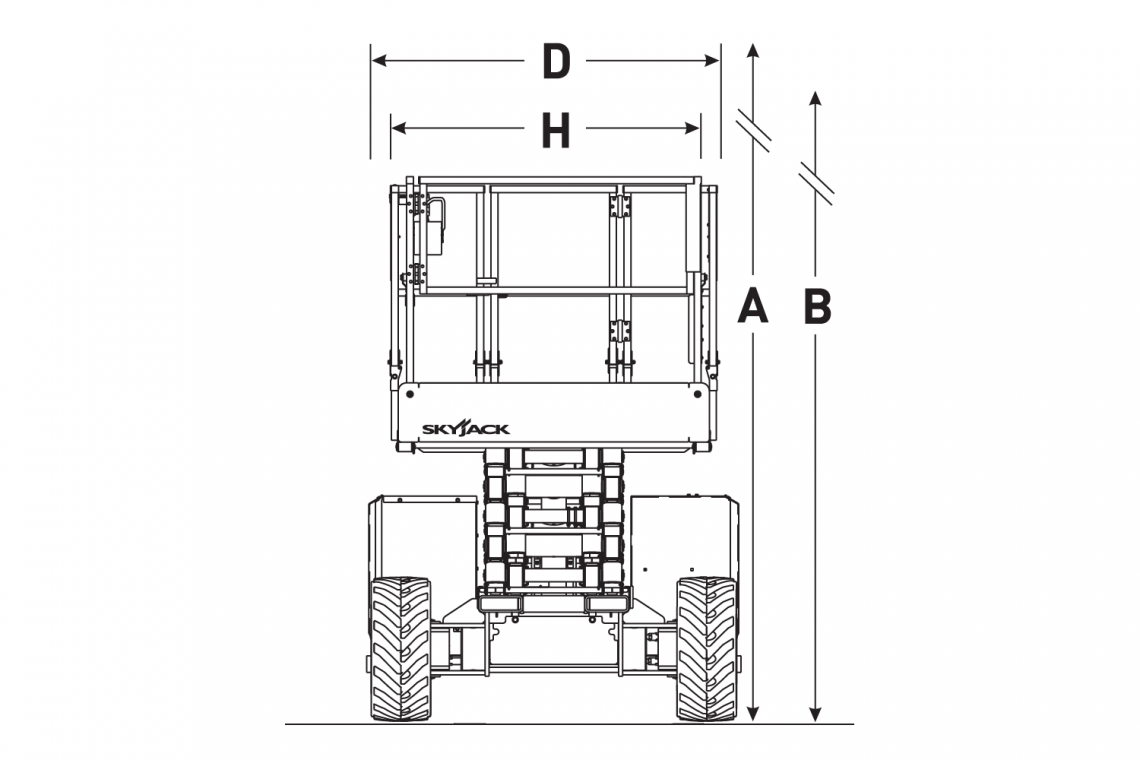

Specifications of Scissor Lift SJ6826RT
| Model | SJ6826RT |
| Max. Working Height (A) | 9.75 m |
| Raised Platform Height (B) | 7.92 m |
| Lowered Platform Height | 1.3 m |
| Max. Working Capacity | 567 kg |
| Overall Width (D) | 1.76 m |
| Overall Length (E) | 2.72 m |
| Stowed Height (Rails Up) (F) | 2.38 m |
| Platform Width (H) | 1.42 m |
| Platform Length (I) | 2.44 m |
| Ground Clearance | 0.20 m |
| Gradeability | 45% |
| Fuel Tank Capacity | 87 ℓ |
| Machine Weight | 2,930 kg |
