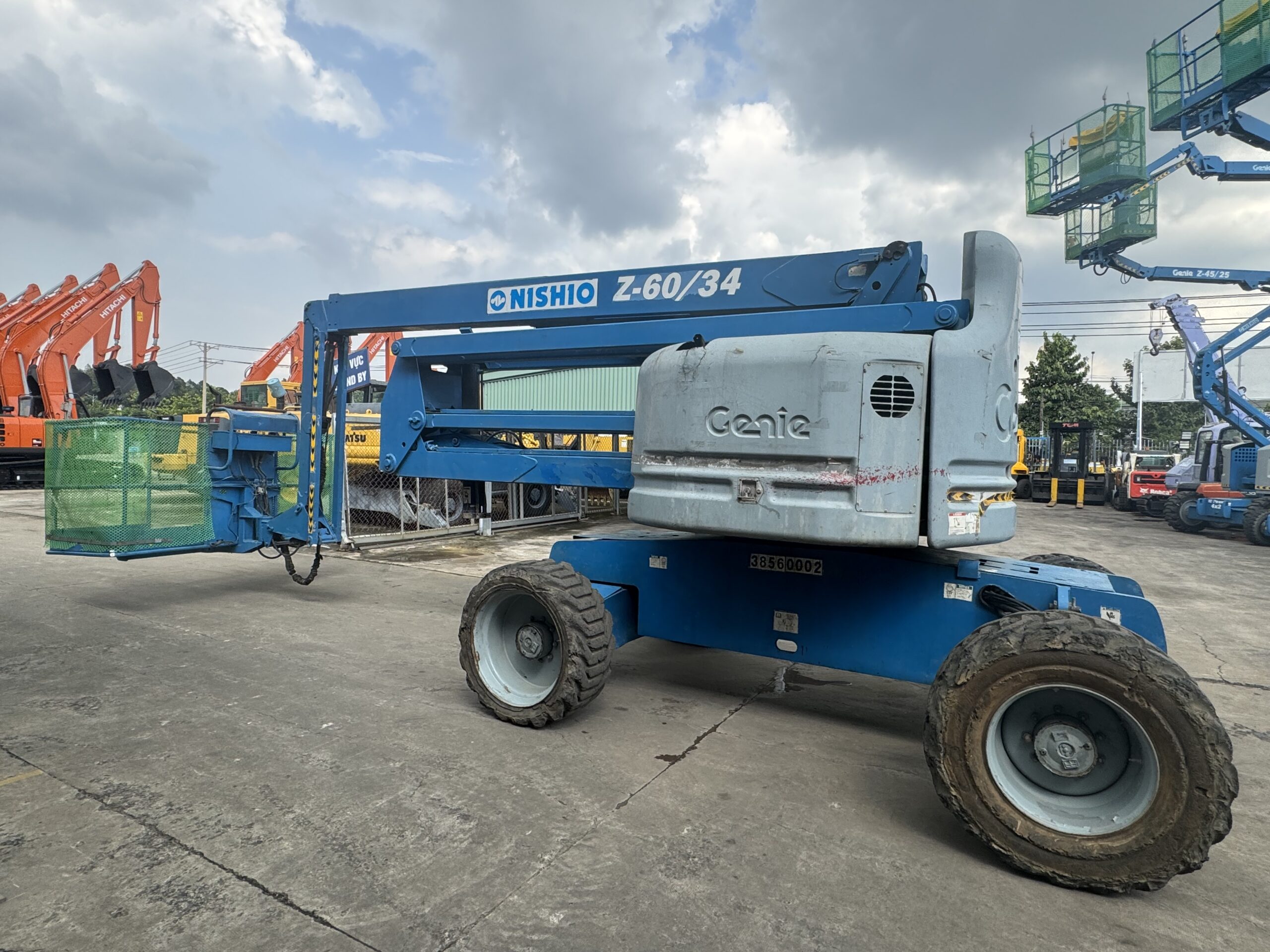

USED ARTICULATED BOOM LIFT GENIE Z60/34
- Model
- Z34/22
- Type
- Diesel
- Year
- 2010/ 2011
- Country
- USA
- Max. working height
- 20.39 m
- Max. load capacity
- 227 kg
- Price
- 7xx,xxx,xxx VND
- Quantity
- 6
GENIE is an American company founded in 1966 when Bud Bushnell bought the manufacturing rights to a material lift that operated on compressed air. With growing demand for material lifts and mobile elevating work platforms (MEWPs), products such as man-lifts, stick booms, articulated booms, scissor lifts, and telehandlers have been added to the Genie® product line. Genie equipment is used in a variety of industries, including rental, aviation, construction, entertainment, government and military, industrial, as well as warehouse and retail.
この機器には複数のモデルがございます。詳細についてはお気軽にお問い合わせください。
Thanks to its quiet, clean operation and four-wheel-drive capability, the Genie® Z®-60/34 DC is a versatile, fully electric, eco-friendly articulating boom lift, well suited for a wide range of indoor and outdoor applications, including construction sites, sports arenas, shopping malls, industrial facilities, and even demanding pedestrian areas
Reasons to buy a used Genie® Z®-34/22 DC Electric Articulating Boom Lift from NISHIO
-
Genuine product with full documentation.
-
Save 40–60% in cost compared to a brand-new machine.
-
In stock and ready for immediate use.
- A reputable brand with easy availability of spare parts.
-
Dedicated and professional technical support.
- In stock and ready for immediate use.
Please contact us for more detailed information.
※表は左右にスクロールして確認することができます。
Max. load capacity
227 kg
Max. working height
20.39 m
Max. platform height
18.39 m
Horizontal reach max.
11.05 m
Up and over clearance max.
8.23 m
Platform length (A)
0.91 m
Platform width (B)
2.44 m
Height - stowed (C)
2.69 m
Length - stowed (D)
8.15 m
Width (E)
2.46 m
Wheelbase (F)
2.51 m
Ground clearance - centre (G)
0.41 m
Platform rotation
180°
Vertical jib rotation
90°
Turntable rotation
360° continuous
Turntable tailswing
0 cm
Drive speed - stowed
4.8 km/h
Drive speed - raised**
1.1 km/h
Gradeability - 4WD - stowed***
40%
Turning radius - inside
3.04 m
Turning radius - outside
6.07 m
Controls
12 V DC proportional

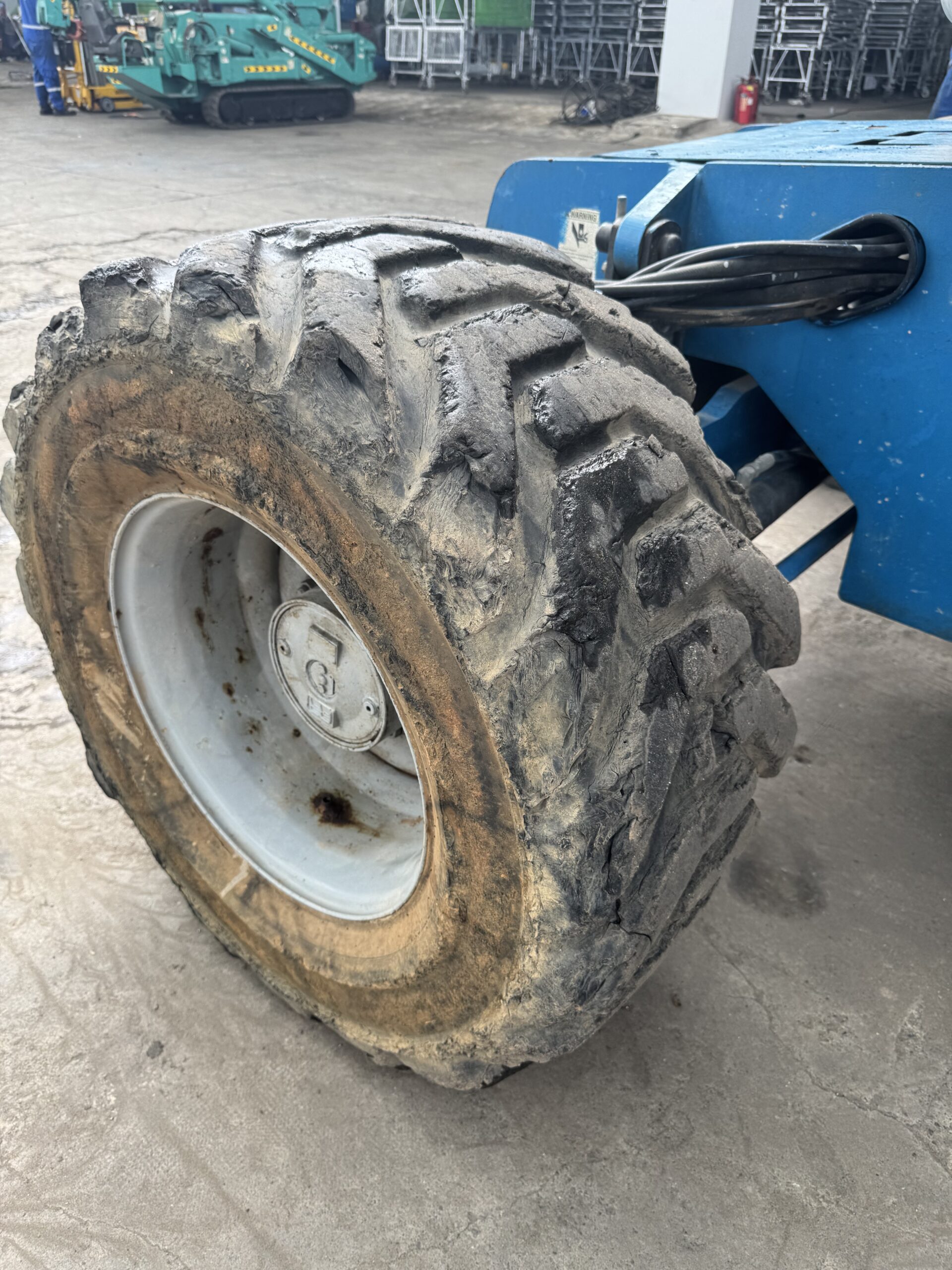

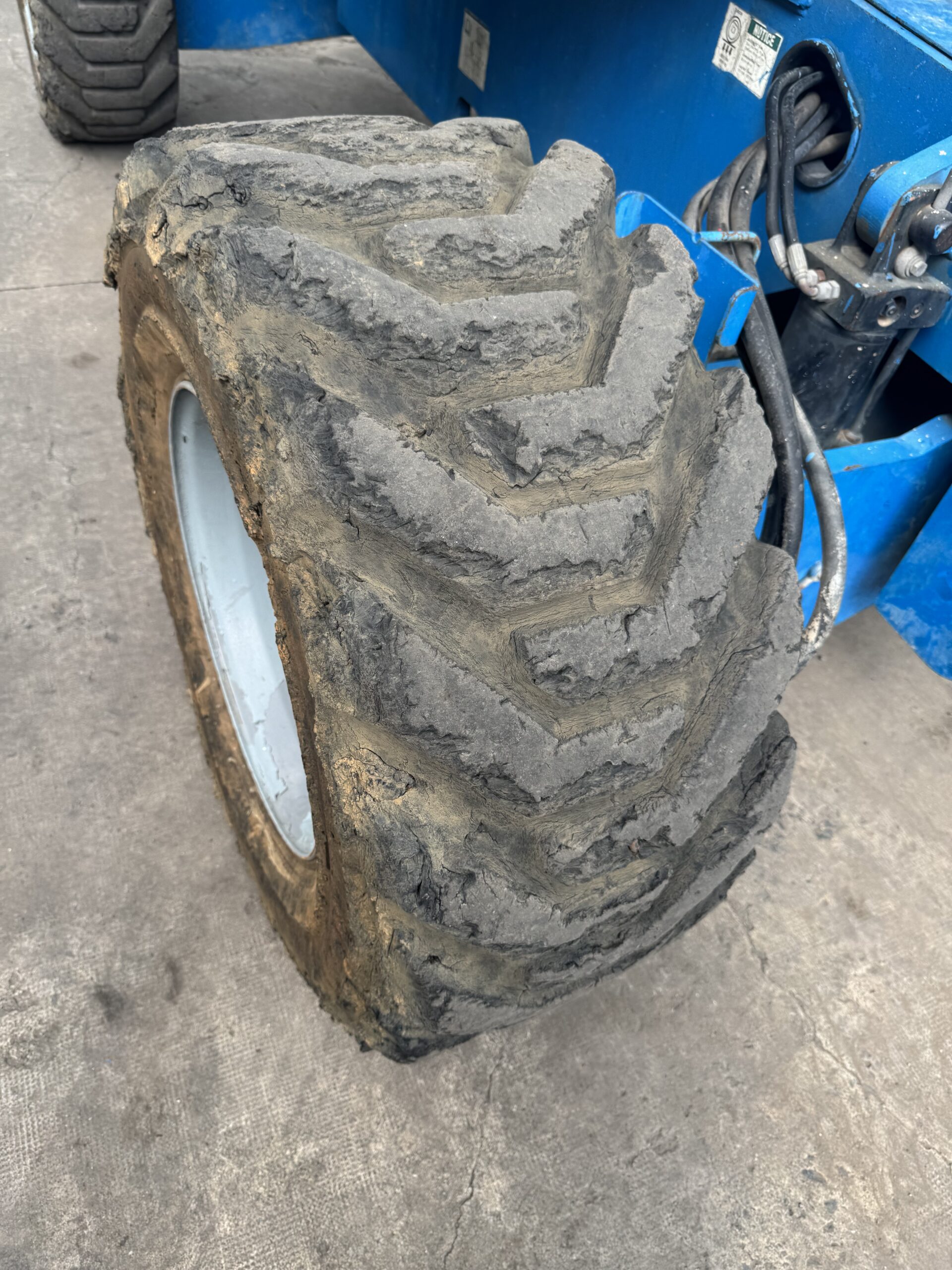

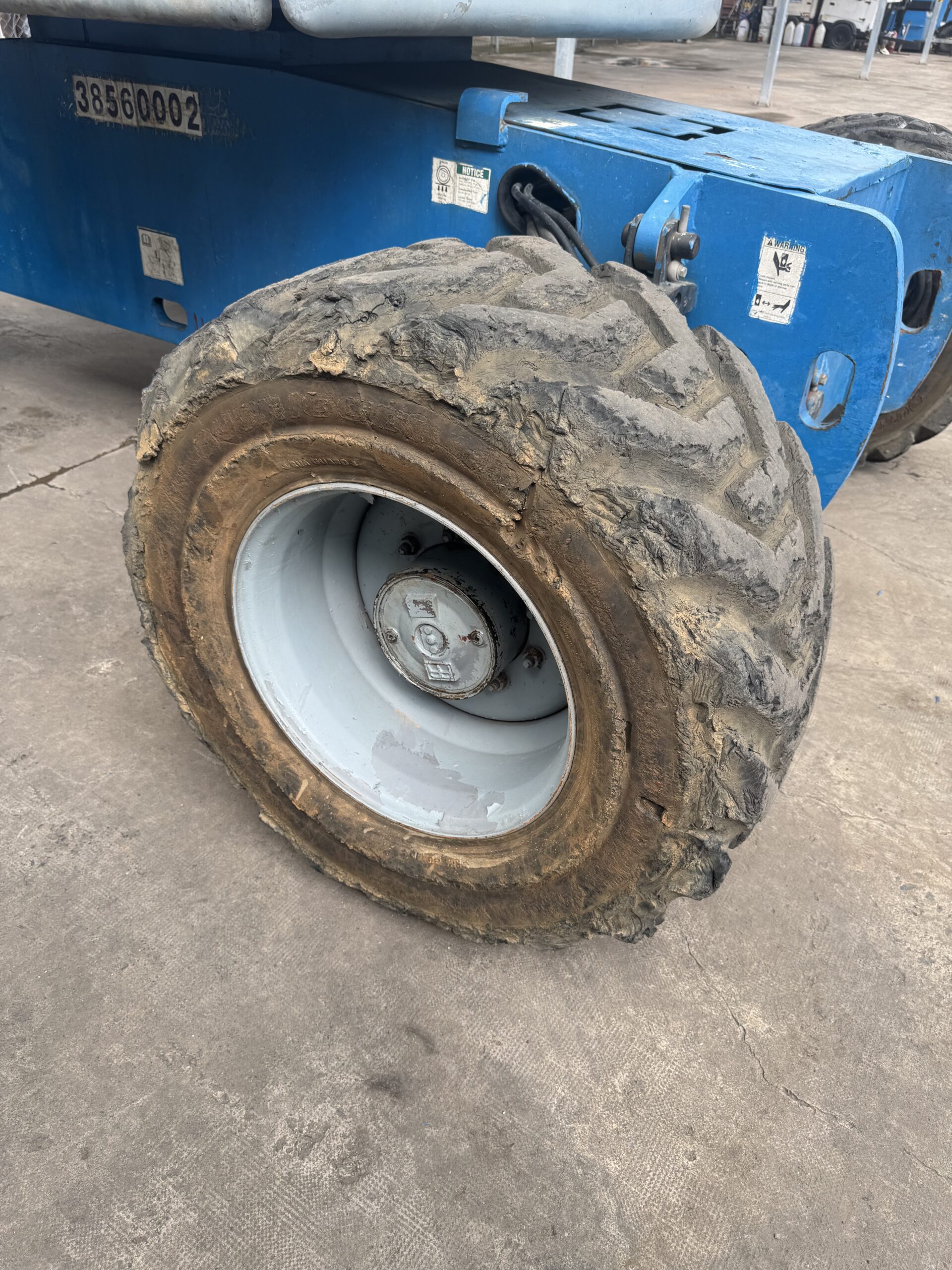

Tyres - RT Lug - Foam filled
385/65 D19.5
Power source
Deutz D2011L03i 3-cylinder diesel 35.8 kW (48 hp)
Auxiliary power unit
12 V DC
Hydraulic tank capacity
170.3 L
Fuel tank capacity
75.7 L
WEIGHT****
11,800 kg
