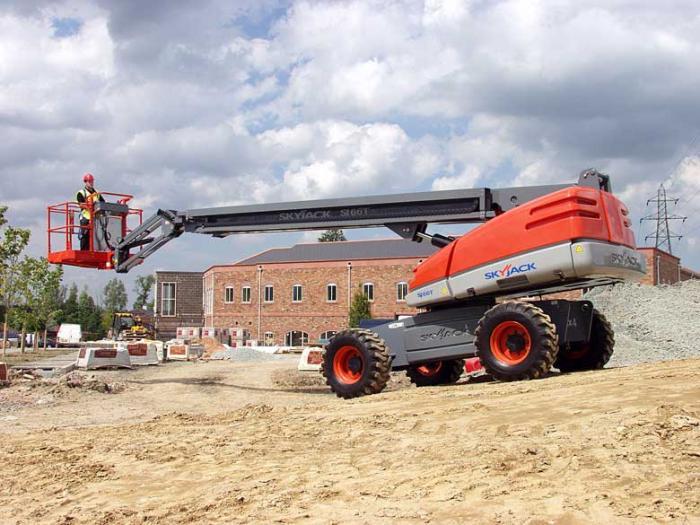

Telescopic Boom Lift 22.02m SJ66T+
- 유형
- Diesel Engine
- 모델
- SJ66T+
- 제조국
- USA/ China
SKYJACK is a Canadian company founded in 1985, known for making reliable and high-quality aerial work platform equipment. Over the years, Skyjack became an industry leader by providing machine features that combine durability, quality, and ease of maintenance. Quality and reliability are the hallmarks that have given Skyjack scissor lifts a solid reputation as the best and one in three scissor lifts sold worldwide is a Skyjack.
By using proven technology and keeping designs simple, Skyjack ensures that all machines are reliable, easy to service and maintain for customers.
이 장비는 다양한 모델이 있으니, 자세한 사항은 문의해 주세요.
- Performance: EASYDRIVE™ direction sensing, AXLDRIVE™ 4WD, locking rear differential, oscillating steer axle, drivable at full height, 50% gradeability, wet disc SAHR brakes on both axles.
- Controls: SKYCODED™ dual module wiring, proportional joystick, speed selector, and toggle controls.
- Engine: Deutz TD2.9L4 diesel or Kubota WG2503 dual fuel.
- Platform: 660/1,000 lbs dual capacity, 36” x 96” size, bolt-in railings, tri-entry sliding mid rails, lanyard points, 110V AC outlet with GFI.
- Safety: Secondary Guarding Electrical (SGE), overload sensing, tilt alarm (5° x 5°), single-point emergency lowering, operator horn, all-motion alarm.
- Design: Swing-out engine tray, swing-up cowlings, lockable power disconnect, 360° turret rotation, tie-down/lifting lugs, foam-filled grip lug tires, telematics ready and hour meter.
- Warranty: 2-year Gold Leaf, 5-year structural.
※표는 좌우로 스크롤 해 확인할 수 있습니다.
Working Range of Telescopic Boom Lift SJ66T+
Specifications of Telescopic Boom Lift SJ66T+
| Model | SJ66T+ |
| Max. Working Height | 22.02 m |
| Max. Platform Height | 20.19 m |
| Horizontal Reach | 17.38 m |
| Safe Working Load | 340 / 454 kg |
| Platform Size (A) | 0.91 x 2.44 m |
| Stowed Width (B) | 2.44 m |
| Tailswing (C) | 1.33 m |
| Stowed Height (D) | 2.59 m |
| Stowed Length (F) | 10.4 m |
| Wheelbase (H) | 2.44 m |
| Ground Clearance (I) | 0.36 m |
| Gradeability | 50% |
| Fuel Tank Capacity | 170 ℓ |
| Weight | 12,585 kg |
