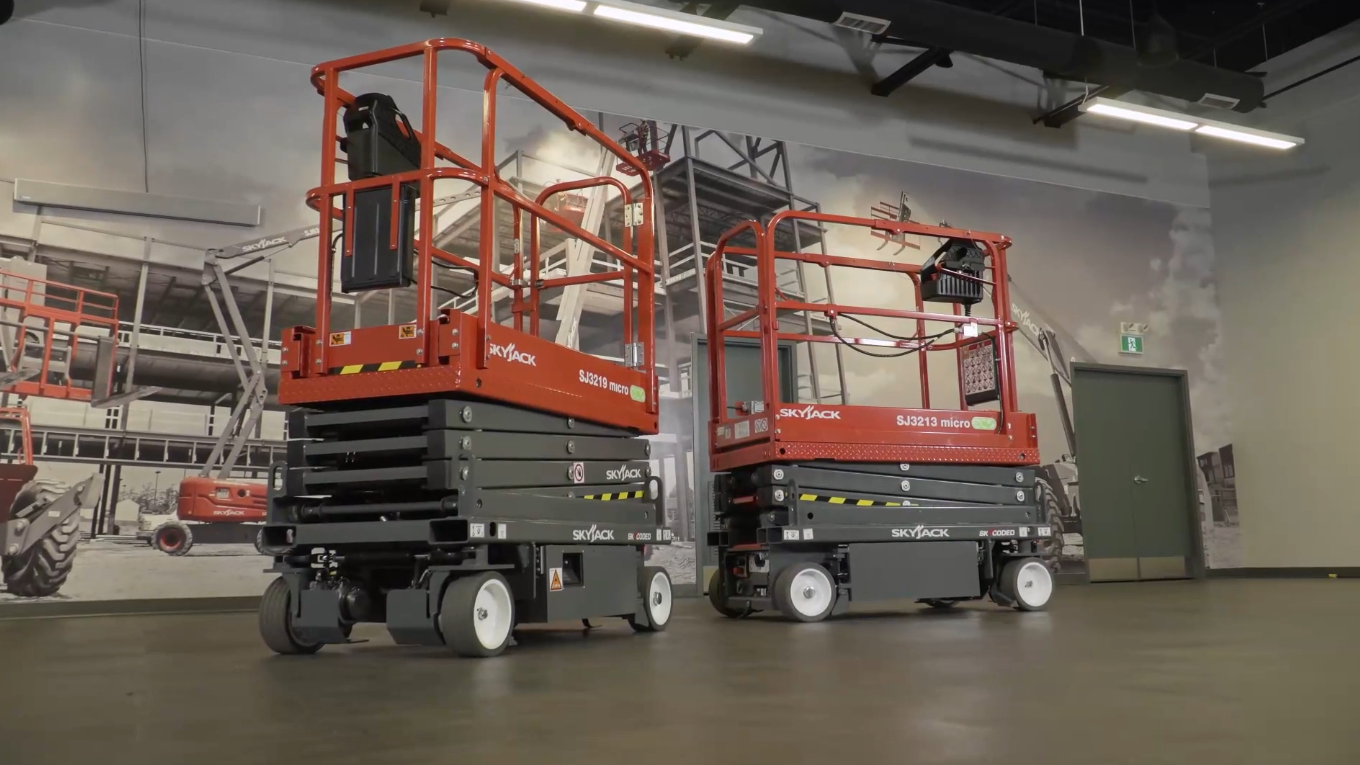

Overview of the Scissor Lift SJ3219 Micro

Skyjack’s new micro range represents the smallest and lightest in the Skyjack range and represent a significant new presence in the low level access arena. Thanks to its compact size & smooth operation, it’s well-suited for both indoor and outdoor use on flat ground, especially in areas that require low noise and low emissions.

Scissor Lift SJ3219 Micro combines low cost of ownership with Skyjack’s renowned product support.

Video of the Scissor Lift SJ3219 Micro

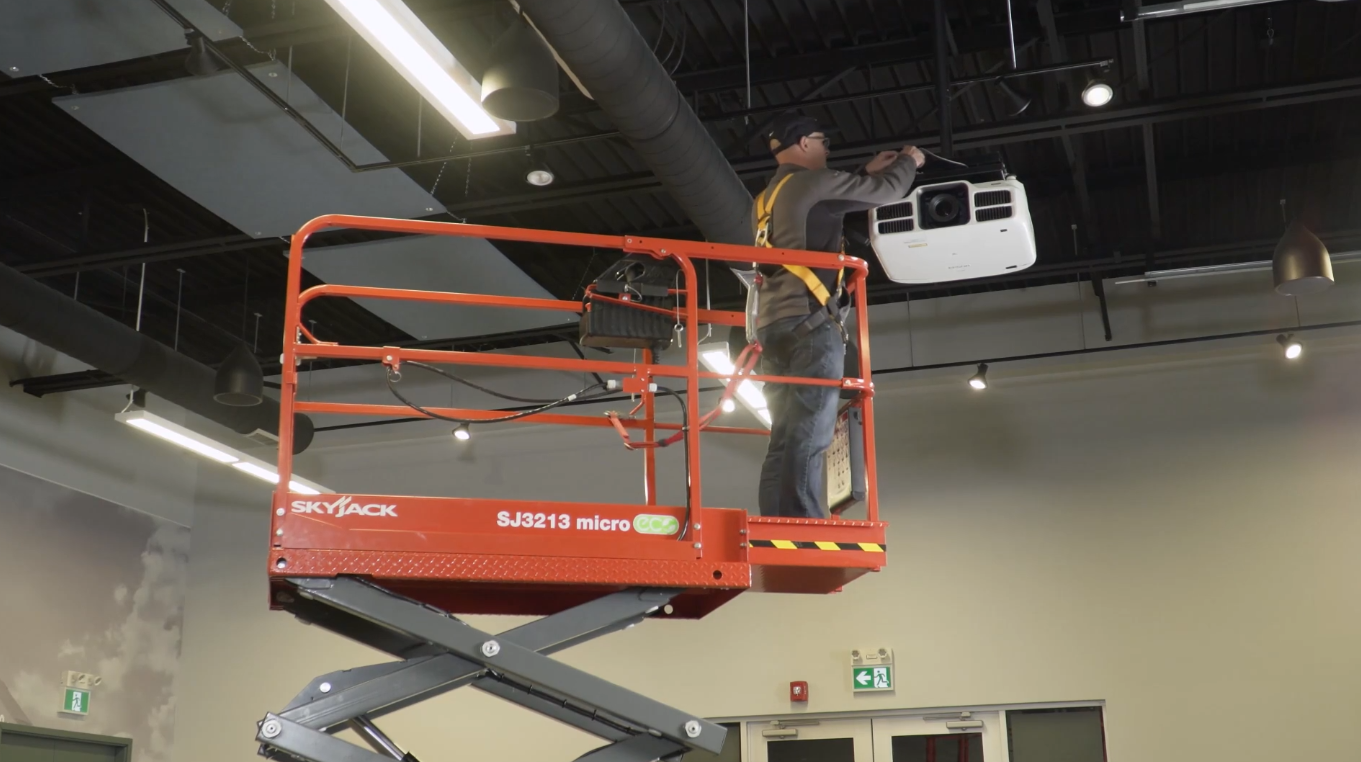

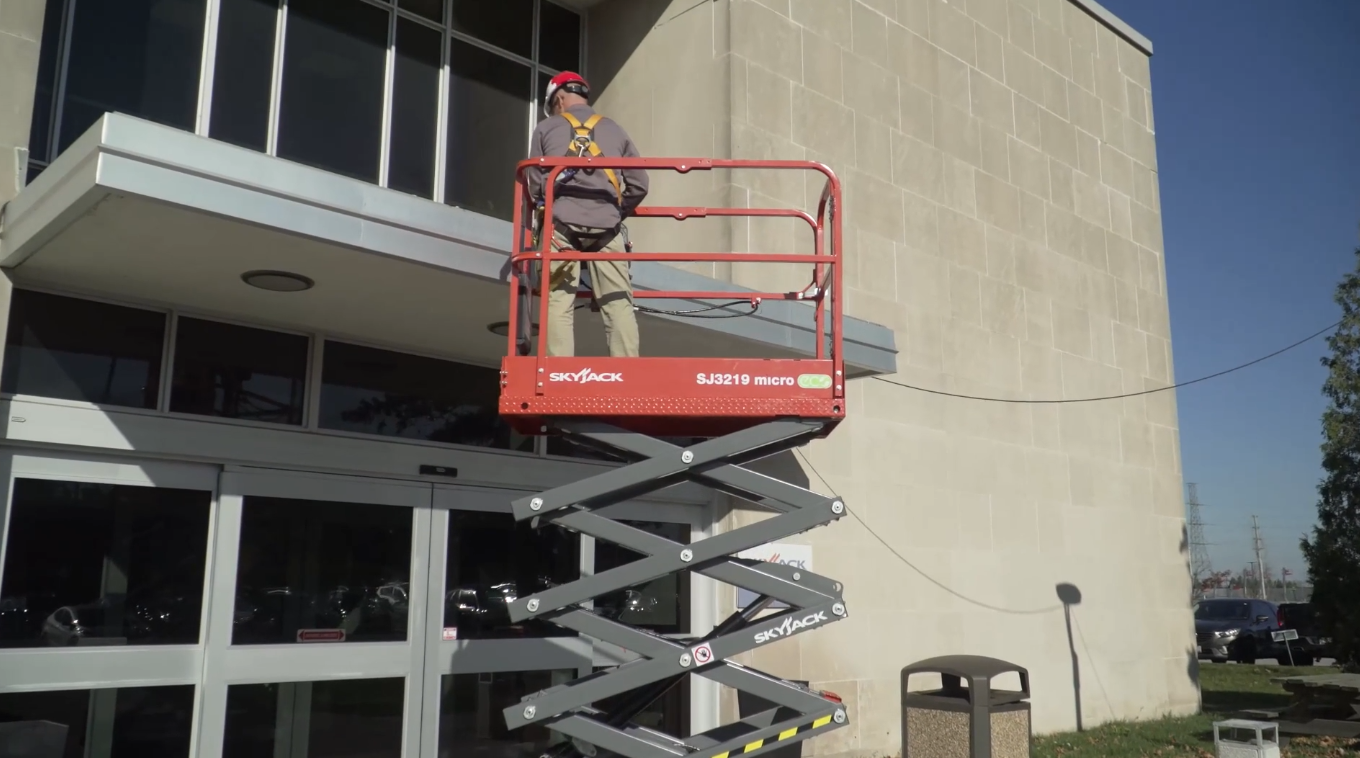

Applications of the Scissor Lift SJ3219 Micro

• Indoor use: Perfect for working in shopping centers, hotels, stadiums, warehouses,… with low load capacity.
• Factories and industrial zones: Suitable for installing or maintaining electrical systems, lighting, ductwork, fire protection, signs, painting, and repairs in factories and industrial zones.
• Tight spaces and residential areas: Ideal for working in schools, hospitals, cinemas, and other public buildings thanks to its quiet and emission-free operation.

Features of the Scissor Lift SJ3219 Micro

Compact design

Designed with both indoor and outdoor use in mind, Scissor Lift SJ3219 Micro is drivable indoors at full height. They also have the optional wind rating for one person up to 4.87m for the SJ3219 MICRO. This increases the application possibilities and rate of return.

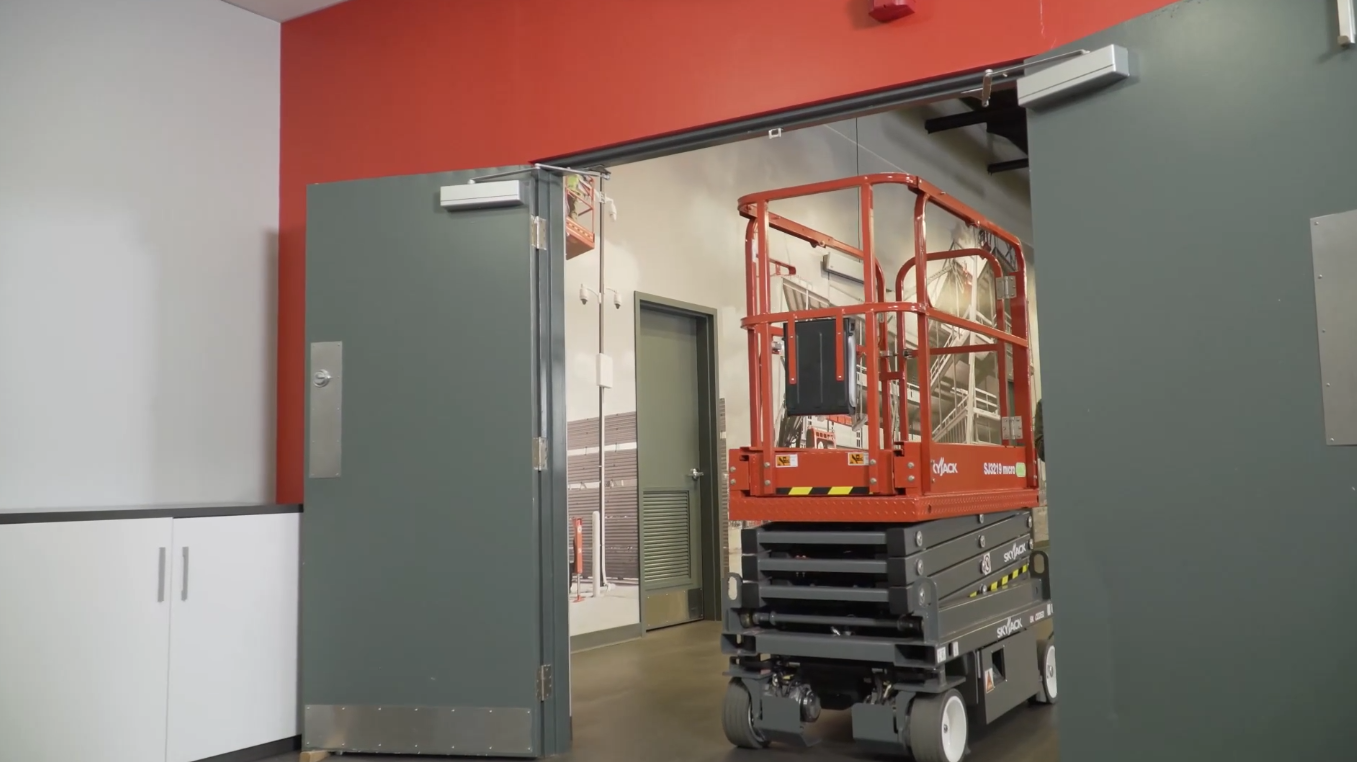

• SJ3219 Micro comes with solid rails with a full height entrance gate, designed to go through a standard door without having to fold rails.

• A 1.8m control capable allows for ease of walking through entrances or doorways. A lift/drive switch with a timed-out delay helps prevent inadvertent operation.
• A 0.5m extension deck adds flexibility and provide additional reach when needed.

v

Powerful E-Drive ystem

Skyjack’s focus on improving productivity and reducing lifetime maintenance expenditure improves your cost of ownership. More return on investment with maintenance free brushless AC Electric Drive motors, more runtime per charge with less power consumption and lower battery maintenance.

• Variable speed brushless AC electric front wheel drive provides exceptional duty cycles. Fully proportional drive and lift controls offer superior drive.
• Smart control system with roportional controls let the operator adjust lifting and driving speeds smoothly based on button pressure. The SKYCODED™ color-coded wiring supports easy diagnostics, along with a controller box featuring an extension cable and impact-resistant casing.
• E-Drive improves controllability and provides consistent power, torque, and traction.
• With over 25% gradeability climbing loading ramps is easy and excellent all-round job site performance and maneuverability is achieved.

Lower maintenance & operating costs

• Swing out trays provide easy access to all service components, such as the Pump motor unit, main manifold and controller.

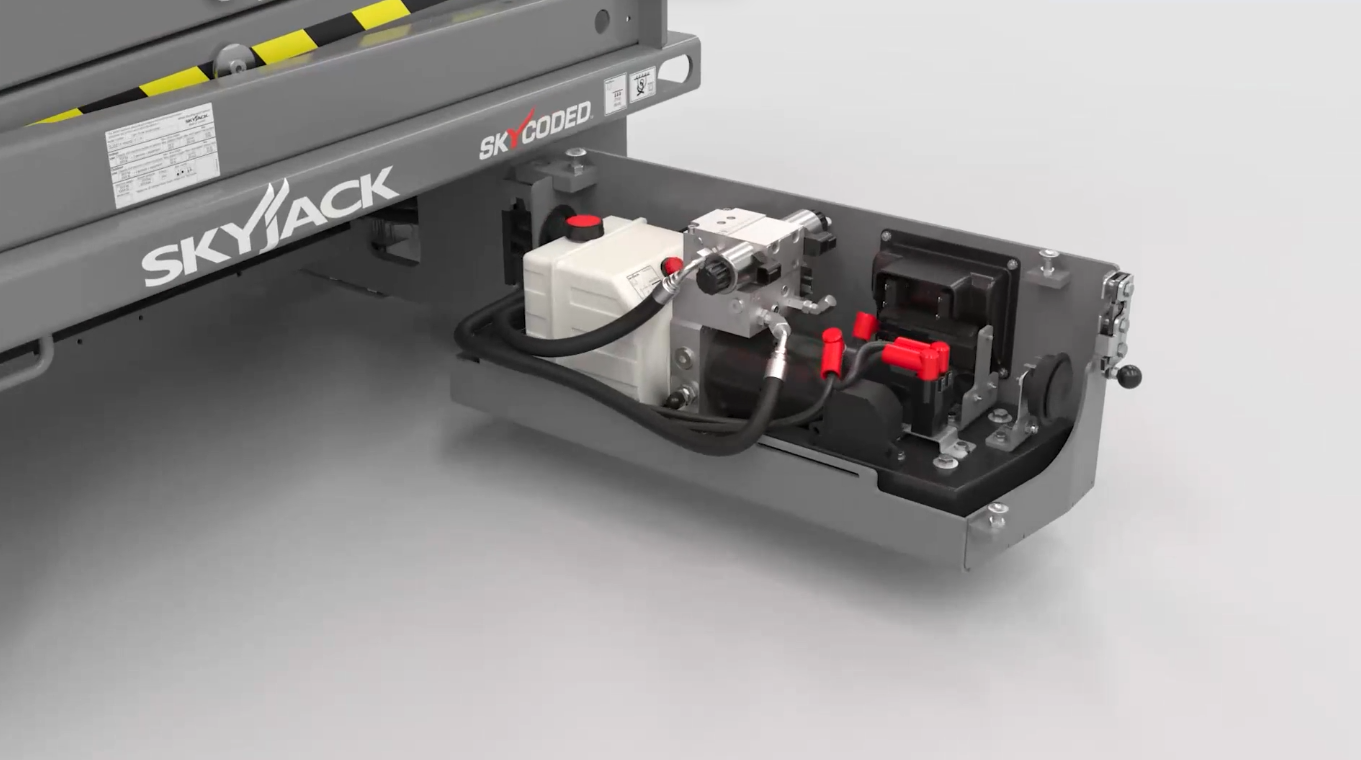

• A second tray houses two x 12 V 105 amp hour batteries that provide the units power.

Smart diagnostic system

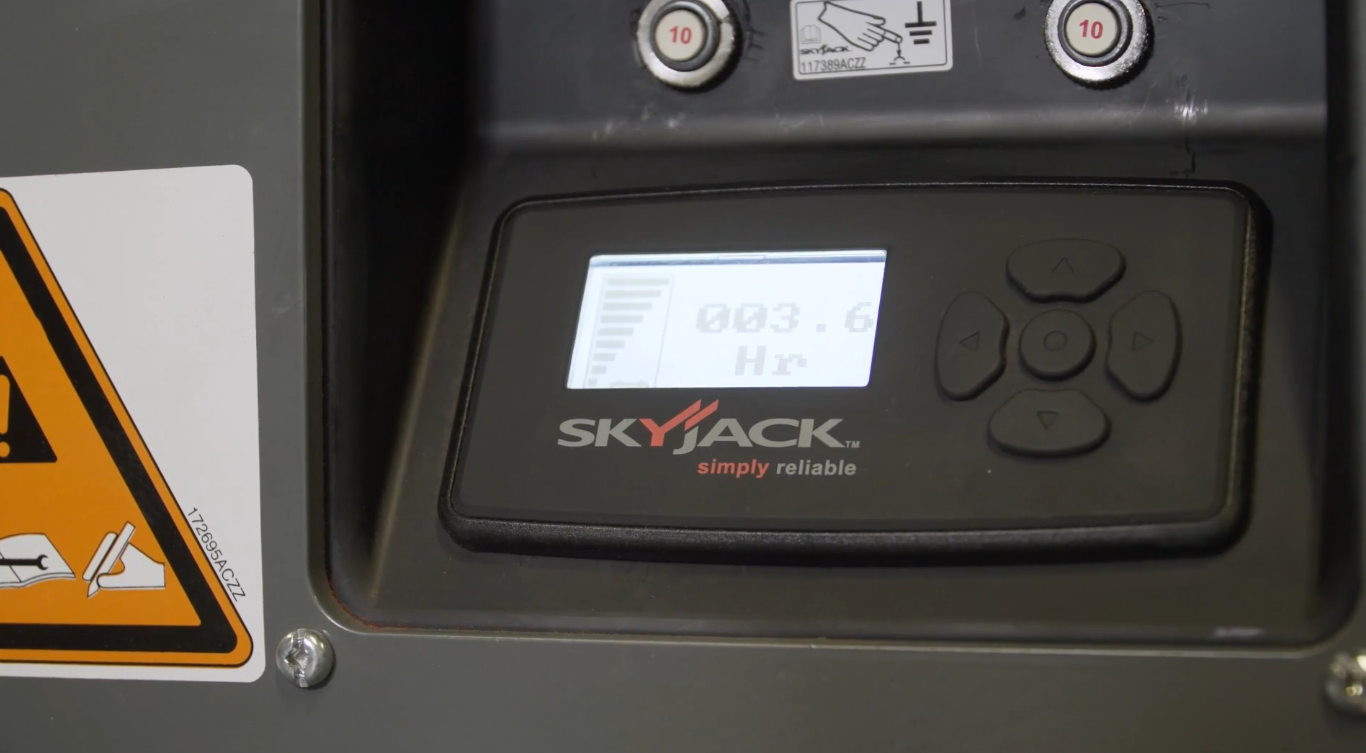

• The externally visible onboard diagnostic system provides real-time data, easy to understand machine faults, written in plain and simple language, without the need to open service trays.

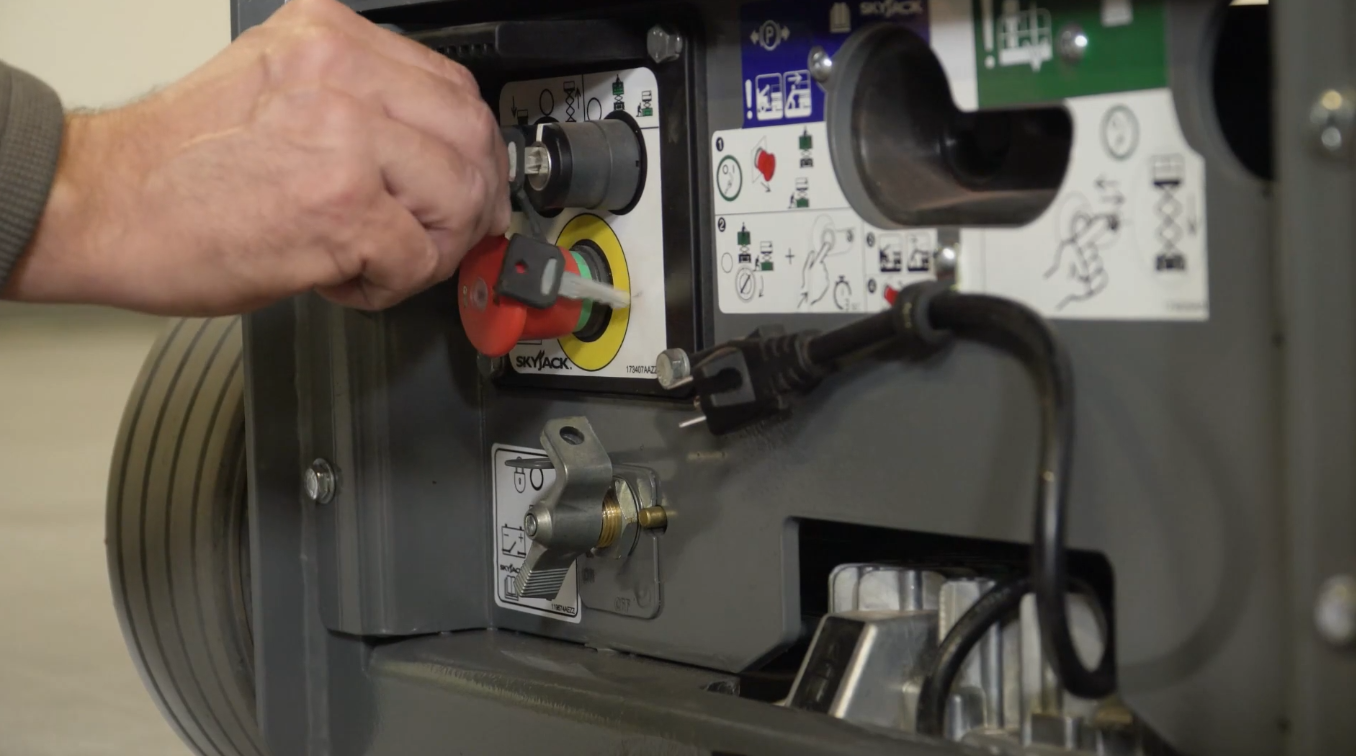

• No plug-in calibration is necessary for day-to-day troubleshooting. The battery charger and base controls are located at the rear of the machine for easy access. Here you will also find the single action emergency lowering switch, brake release and lockable battery disconnect switch.

Safety features

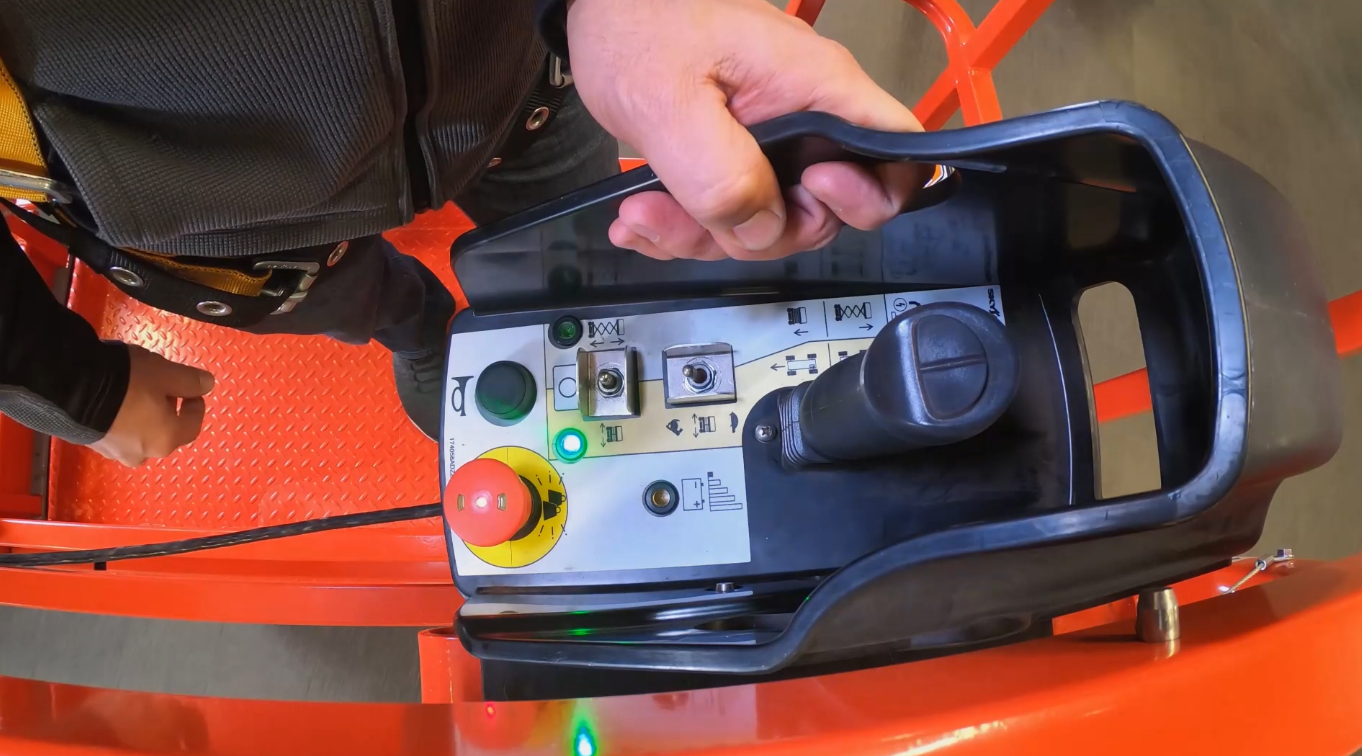

• The removable, high strength and impact resistant composite upper control box with integrated shroud houses. The proportional CAN joystick equipped with a safety enable trigger, thumb steer, selector switches, low battery light indication, horn and emergency stop.

• Emergency lowering switch

• Brake release
• Overload sensing system
• Tilt alarm with drive & lift cut-out (3° x 1.5°)
• Dual holding brakes
• Operator horn
• Solid rubber, non-marking tires
• Steel front wheel motor guards
• Forklift pockets and tie down
• Solid rails
• Telematics ready

Pricing for Sales of Skyjack Scissor Lift SJ3219 Micro in Vietnam

NISHIO RENT ALL VIETNAM CO., LTD is one of the most reliable and professional aerial work platform providers worldwide. With many years of cooperation with SKYJACK, NISHIO now officially sells Skyjack Scissor Lifts in Vietnam. We are committed to delivering high-quality equipment that meets international standards, ensuring safety and maximizing performance during operation.

Please contact us for more information!
