Overview of Scissor Lift SJ3219 Micro

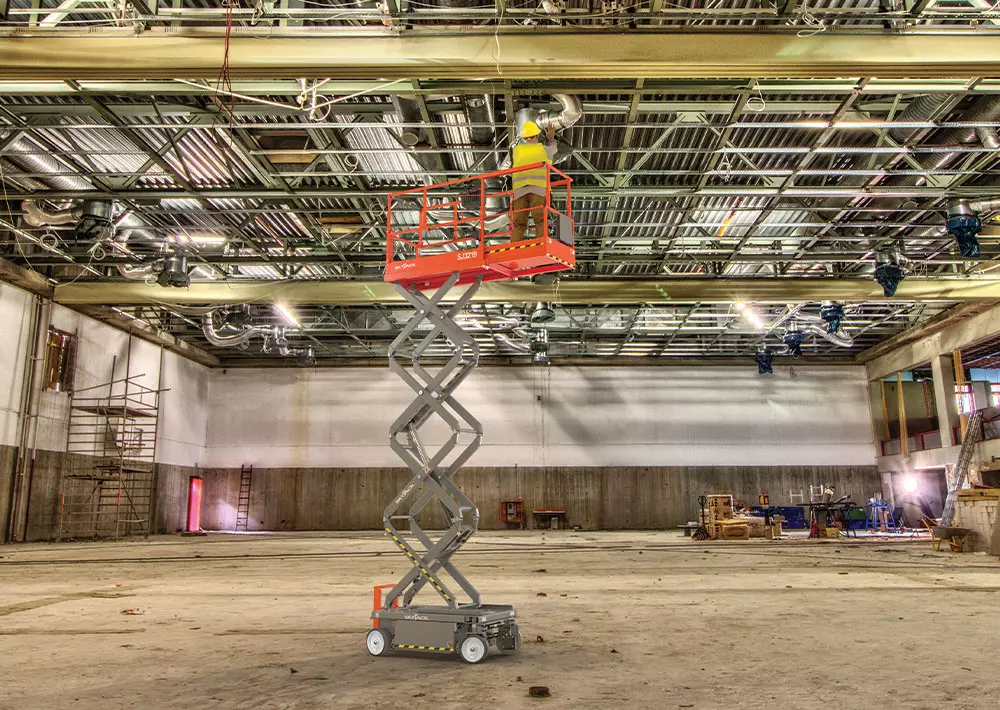

SJ3219 Micro is a compact, eco-friendly solution for construction, installation, and maintenance work at medium heights. With its quiet, zero-emission operation and compact design, it’s ideal for indoor and outdoor use on flat surfaces—especially in places where noise and emissions need to be limited.
Applications of Scissor Lift SJ3219 Micro
- Indoor uses: Suitable for use in shopping malls, hotels, sports halls, warehouses, or on upper floors where floor loading is limited.
- Industrial and factory zones: Ideal for installing and repairing electrical systems, lighting, ductwork, fire protection, signage, and general maintenance tasks in factories and industrial parks.
- Tight spaces and residential areas: Perfect for maintenance work in schools, hospitals, libraries, cinemas, and other places where quiet, emission-free operation is essential.
Key Features of Scissor Lift SJ3219 Micro
- Stable performance: Operates smoothly at full height and can handle wind speeds up to 12.5 m/s (depending on platform height configuration: 3.6 m / 4.8 m). The front-wheel electric drive and 25% gradeability provide excellent control and adaptability across different terrains.
- Smart control system: Proportional controls allow the operator to adjust lifting and driving speeds based on pressure. The SKYCODED™ color-coded wiring makes diagnostics easier, while the control box includes an extension cable and a durable, impact-resistant cover.
- Safety design: The 0.58 m wide platform includes a safety harness anchor point, full-height spring-loaded entry gate, 110V AC outlet with GFI, and hinged RAPIDFOLD guardrails for easier access. Safety features include overload sensors, tilt alarm (3° x 1.5°), dual holding brakes, warning horn, and Telematics-ready design. Solid non-marking tires, steel-covered motors, forklift pockets, lifting rings, and fixed guardrails ensure maximum safety on the job.
- Durable power system: The 24V DC system uses two 12V batteries with built-in low voltage protection and a low battery indicator, helping the machine run continuously while keeping the operator informed about battery status.
- Warranty policy: Standard Gold Leaf Warranty – 2 years for the entire machine and 5 years for structural components.

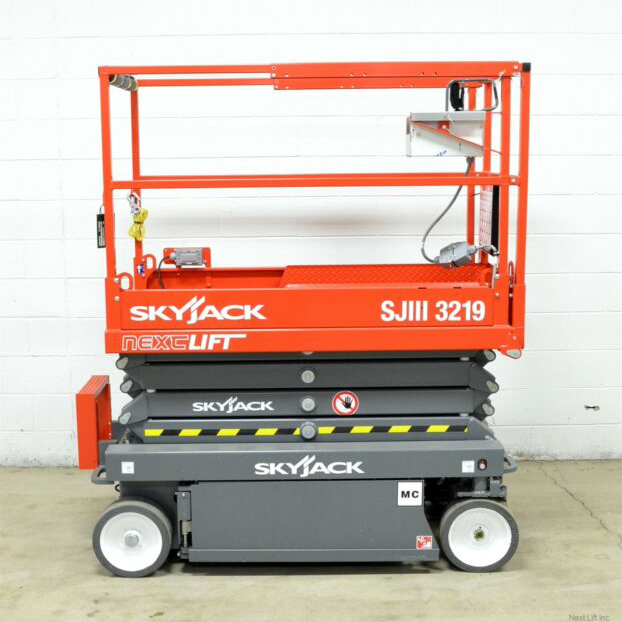

Scissor Lift 7.3m SJ3219 micro
- タイプ
- Electric
- モデル
- SJ3219 micro
- 製造国
- USA/ China
SKYJACK is a Canadian company founded in 1985, known for making reliable and high-quality aerial work platform equipment. Over the years, Skyjack became an industry leader by providing machine features that combine durability, quality, and ease of maintenance. Quality and reliability are the hallmarks that have given Skyjack scissor lifts a solid reputation as the best and one in three scissor lifts sold worldwide is a Skyjack.
By using proven technology and keeping designs simple, Skyjack ensures that all machines are reliable, easy to service and maintain for customers.
この機器には複数のモデルがございます。詳細についてはお気軽にお問い合わせください。
※表は左右にスクロールして確認することができます。
Specifications of Scissor Lift SJ3219 micro
| Model | SJ3219 micro |
| Max. Working Height (A) | 7.3 m |
| Raised Platform Height (Indoor) (B) | 5.5 m |
| Raised Platform Height (Outdoor) (C) | 4.87 m |
| Lowered Platform Height (D) | 0.91 m |
| Max. Working Capacity | 277 kg |
| Overall Width (E) | 0.81 m |
| Overall Length (F) | 1.5 m |
| Stowed Height (Rails Up) (G) | 2 m |
| Platform Width (H) | 0.7 m |
| Platform Length (I) | 1.5 m |
| Wheelbase | 1.26 m |
| Gradeability | 25% |
| Machine Weight | 1,214 kg |
