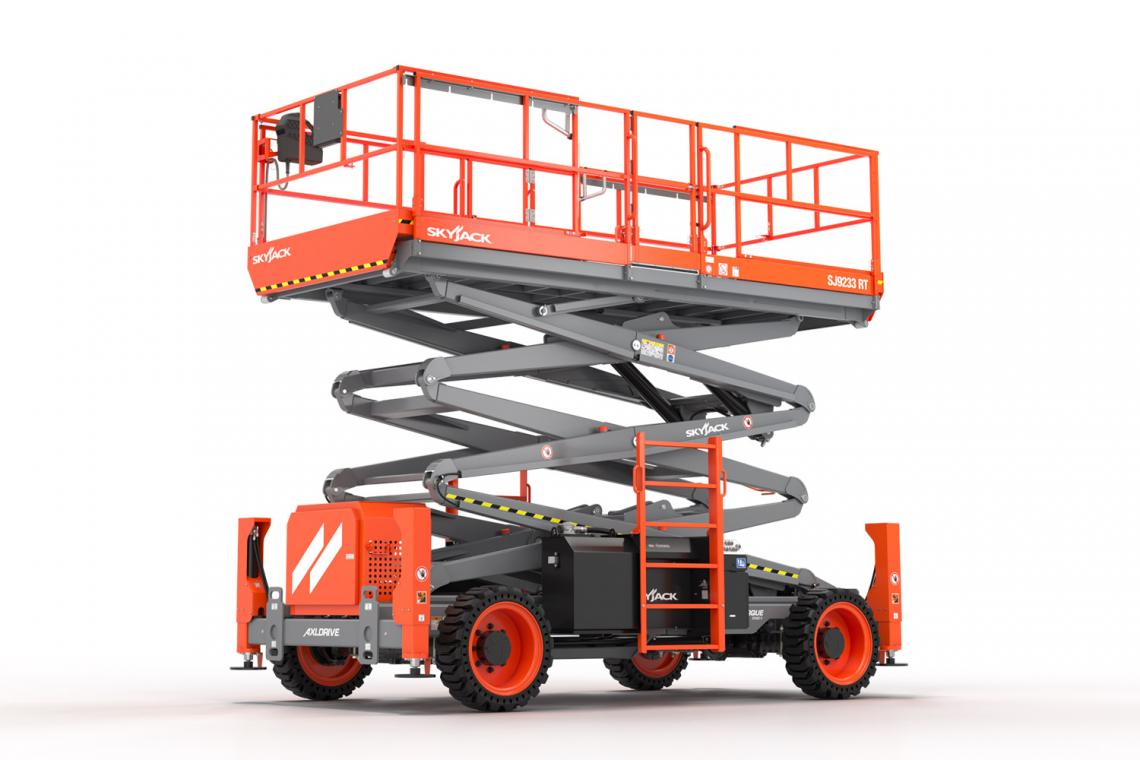

Scissor Lift 14.94m SJ9243RT
- Type
- Diesel Engine
- Model
- SJ9243 RT
- Made in
- USA/ China
Skyjack is a Canadian company founded in 1985, known for making reliable and high-quality aerial work platform equipment. Over the years, Skyjack became an industry leader by providing machine features that combine durability, quality, and ease of maintenance. Quality and reliability are the hallmarks that have given Skyjack scissor lifts a solid reputation as the best and one in three scissor lifts sold worldwide is a Skyjack.
By using proven technology and keeping designs simple, Skyjack ensures that all machines are reliable, easy to service and maintain for customers.
This equipment has many different models,
for more details please contact us.
- Performance: AXLDRIVE™ axle-based 4WD with operator-controlled rear differential locking and limited-slip front differential, drivable at full height, up to 40% gradeability, wet disc SAHR rear axle brakes.
- Controls: SKYCODED™ color-coded wiring, onboard visual diagnostics.
- Platform: Oversized design with optimal clearance, 5’ (1.52 m) rollout extension deck, fold-down hinged rails, full-height entry gates.
- Safety: Tilt alarm (4.5° x 2.5°) with cut-out, overload sensing, single-point emergency lowering, all-motion alarm, operator horn.
- Power: Kubota D1305 Tier 4F diesel engine, 110V AC outlet with GFI.
- Design: Grip lug solid tires, high-strength composite control box, tie-down/lifting lugs, lockable power disconnect, hour meter, flashing light, telematics ready.
- Warranty: 2-year Gold Leaf, 5-year structural.
※The table can be viewed by scrolling left and right.ecification
Specifications of Scissor Lift SJ9243RT
| Model | SJ9243RT |
| Max. Working Height (A) | 14.94 m |
| Raised Platform Height (B) | 13.11 m |
| Lowered Platform Height (C) | 1.85 m |
| Max. Working Capacity | 907 kg |
| Overall Width (D) | 2.3 m |
| Overall Length (E) | 4.42 m |
| Stowed Height (Rails Up) (F) | 3.02 m |
| Platform Width (H) | 1.82 m |
| Platform Length (I) | 4.36 m |
| Ground Clearance | 0.26 m |
| Gradeability | 40% |
| Fuel Tank Capacity | 49 ℓ |
| Machine Weight | 6,749 kg |
