Telescopic Boom Lift 28.04m SJ86T
- Type
- Diesel Engine
- Model
- SJ86T
- Made in
- USA/ China
SKYJACK is a Canadian company founded in 1985, known for making reliable and high-quality aerial work platform equipment. Over the years, Skyjack became an industry leader by providing machine features that combine durability, quality, and ease of maintenance. Quality and reliability are the hallmarks that have given Skyjack scissor lifts a solid reputation as the best and one in three scissor lifts sold worldwide is a Skyjack.
By using proven technology and keeping designs simple, Skyjack ensures that all machines are reliable, easy to service and maintain for customers.
This equipment has many different models,
for more details please contact us.
- Performance: EASYDRIVE™ directional controls, AXLDRIVE™ 4WD, locking rear differential, oscillating steer axle, drivable at full height, 45% gradeability, wet disc SAHR brakes.
- Controls: Relay-based SKYCODED™ wiring, proportional joystick, speed selector, toggle controls.
- Engine: Deutz TD2.9L4 diesel.
- Platform: 500/750 lbs dual capacity, 36” x 96” size, bolt-in railings, tri-entry sliding mid rails, lanyard points, 110V AC outlet with GFI.
- Safety: Secondary Guarding Electrical (SGE), overload sensing, tilt alarm (5° x 5°), single-point emergency lowering, operator horn, all-motion alarm.
- Design: Swing-out engine tray, swing-up cowlings, lockable power disconnect, 360° turret rotation, tie-down/lifting lugs, foam-filled grip lug tires (18 x 625), telematics ready and hourmeter.
- Warranty: 2-year Gold Leaf, 5-year structural.
※The table can be viewed by scrolling left and right.ecification

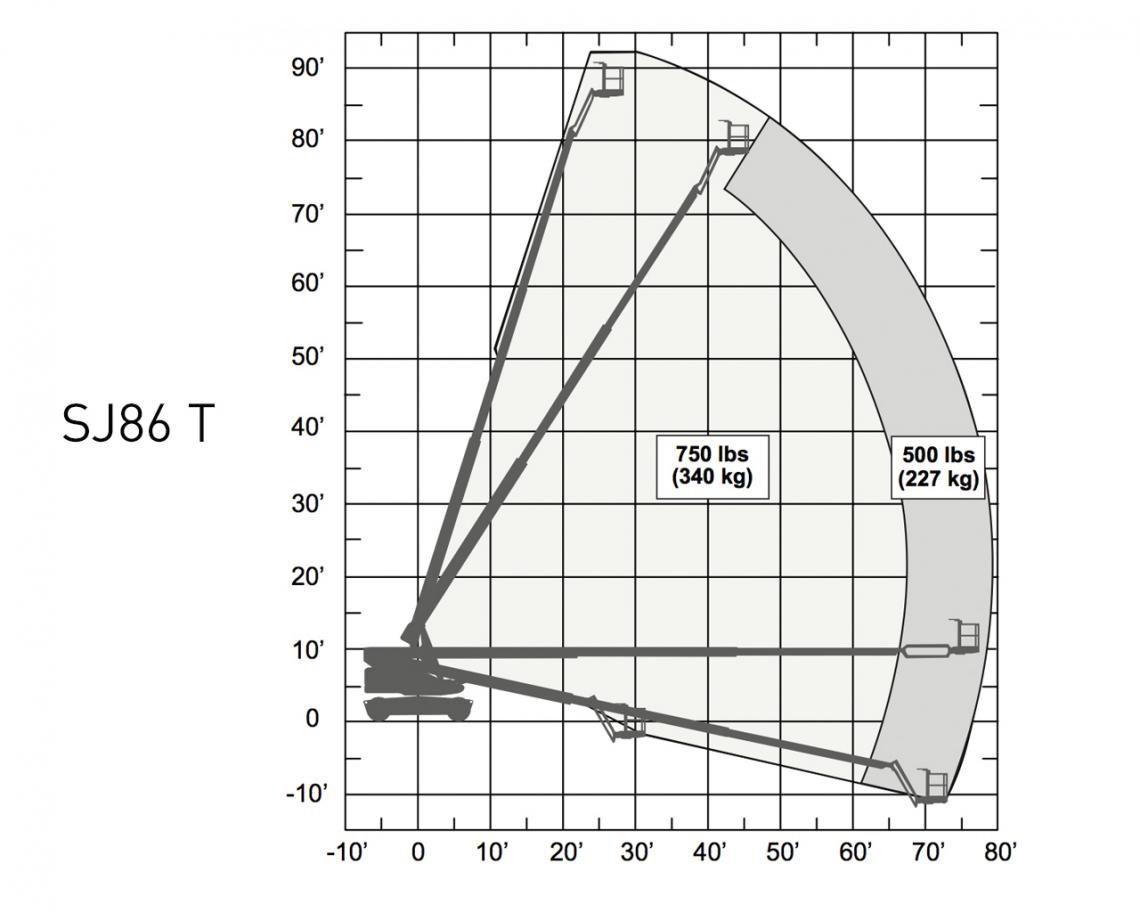

Working Range of Telescopic Boom Lift SJ86T
Specifications of Telescopic Boom Lift SJ86T
| Model | SJ86T |
| Max. Working Height | 28.04 m |
| Max. Platform Height | 26.21 m |
| Horizontal Reach | 23.42 m |
| Safe Working Load | 227 / 340 kg |
| Platform Size (A) | 0.91 x 2.44 m |
| Stowed Width (B) | 2.44 m |
| Tailswing (C) | 1.42 m |
| Stowed Height (D) | 3 m |
| Stowed Length (F) | 12.95 m |
| Wheelbase (H) | 3.35 m |
| Ground Clearance (I) | 0.41 m |
| Gradeability | 45% |
| Fuel Tank Capacity | 170 ℓ |
| Weight | 17,550 kg |
